Coil Winding Machines

Pneumatic Pad Printing Machines Three Color Pneumatic Pad Printing Machines

Euro-1s

Model Euro-1s
Wire Diameter [Single Wire] 0.04 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 7000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-2s

Model Euro-2s
Wire Diameter [Single Wire] 0.04 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 7000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-1sm

Model Euro-1sm
Wire Diameter [Single Wire] 0.02 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 6000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

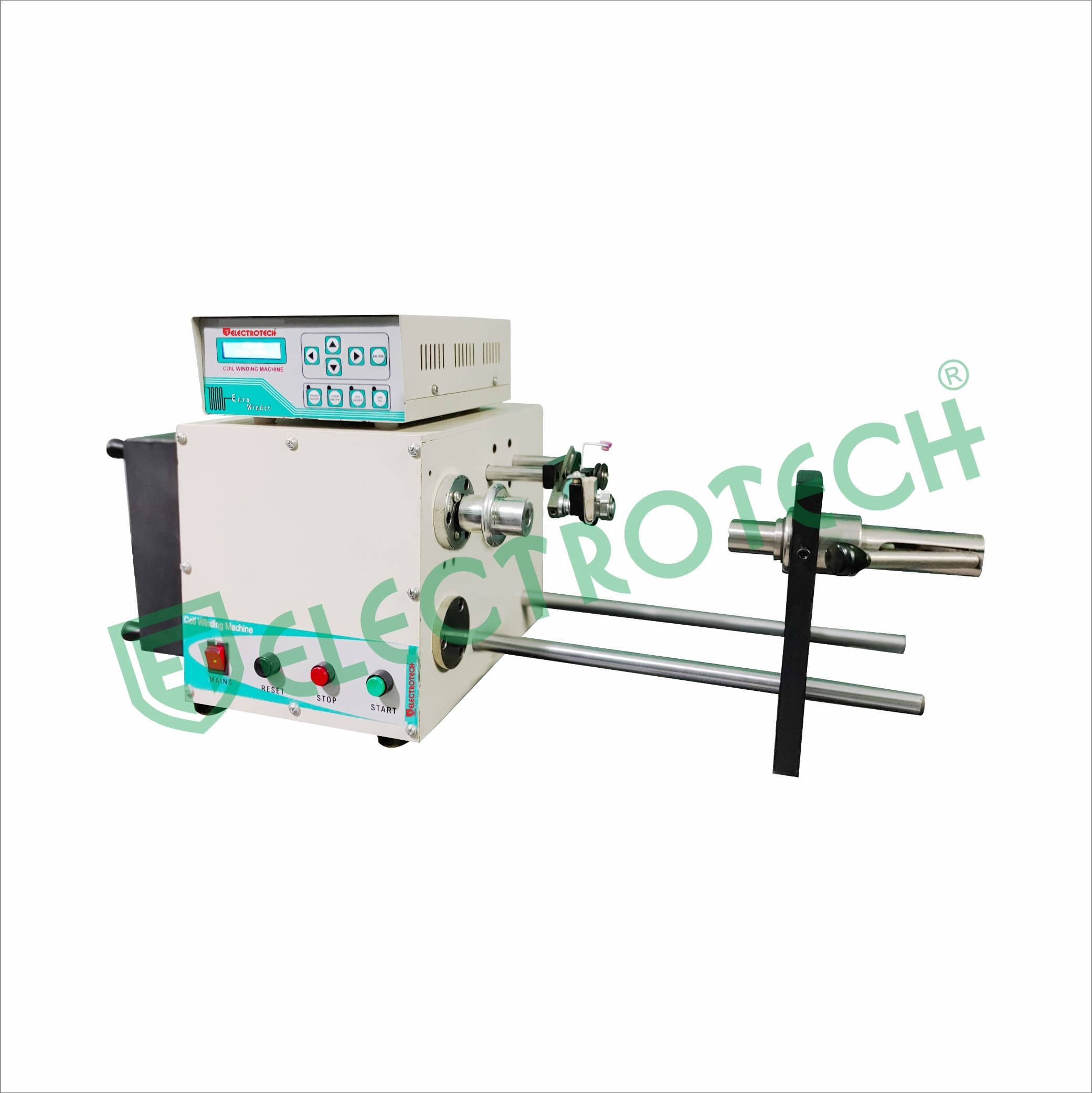

Euro-1sdx

Model Euro-1sdx
Wire Diameter [Single Wire] 0.02 mm to 0.8 mm
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 5000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

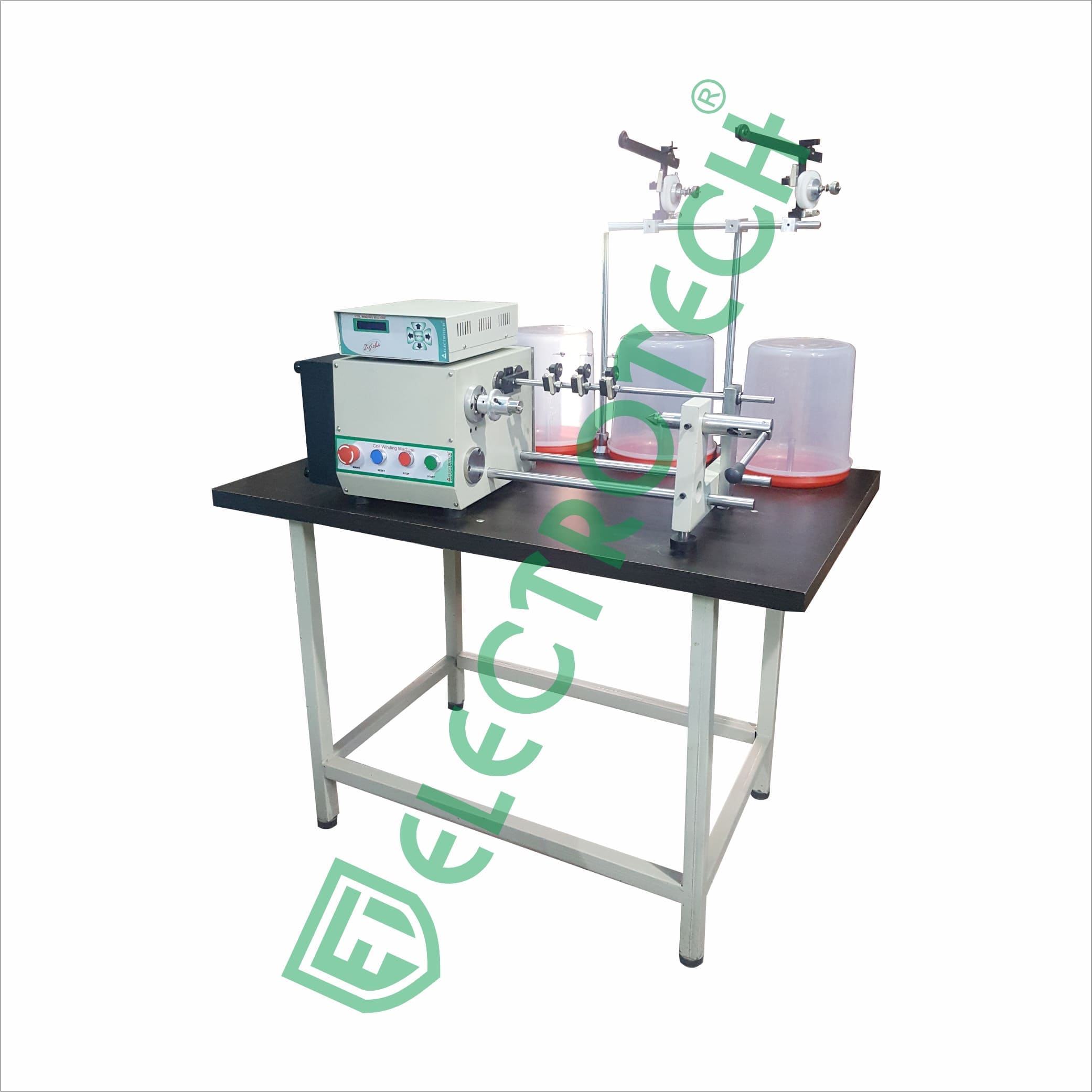

Euro-1sDx(3x6c)

Model Euro-1sDx(3x6c)
Wire Diameter [Single Wire] 0.02 mm to 0.6 mm
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 2500 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

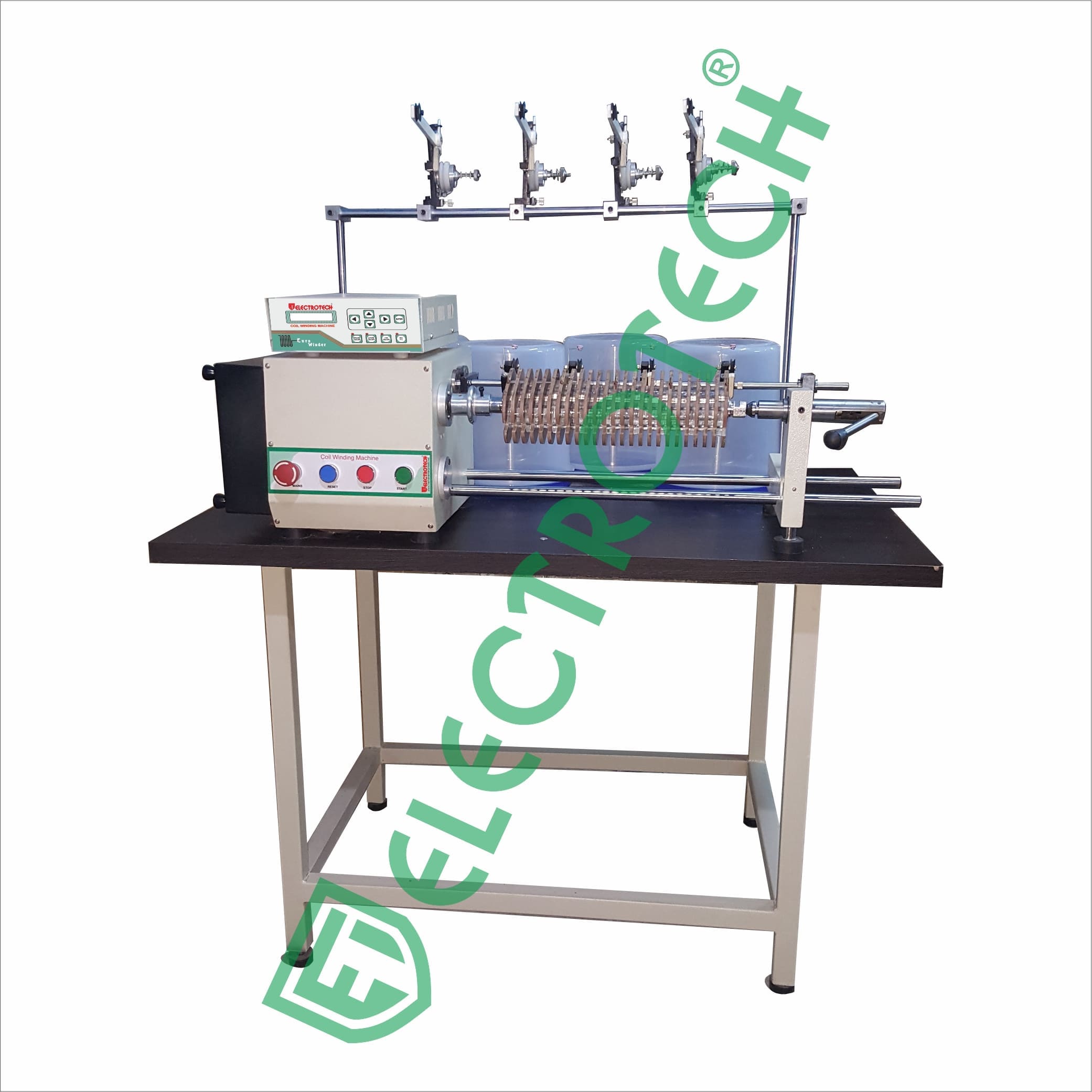

Euro-1sDx(4x6c)

Model Euro-1sDx(4x6c)
Wire Diameter [Single Wire] 0.02 mm to 0.6 mm
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 2500 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-1sDx (FOR DIAPHRAM)

Model Euro-1sDx (FOR DIAPHRAM)
Wire Diameter 0.02 mm to 0.6 mm
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 3000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

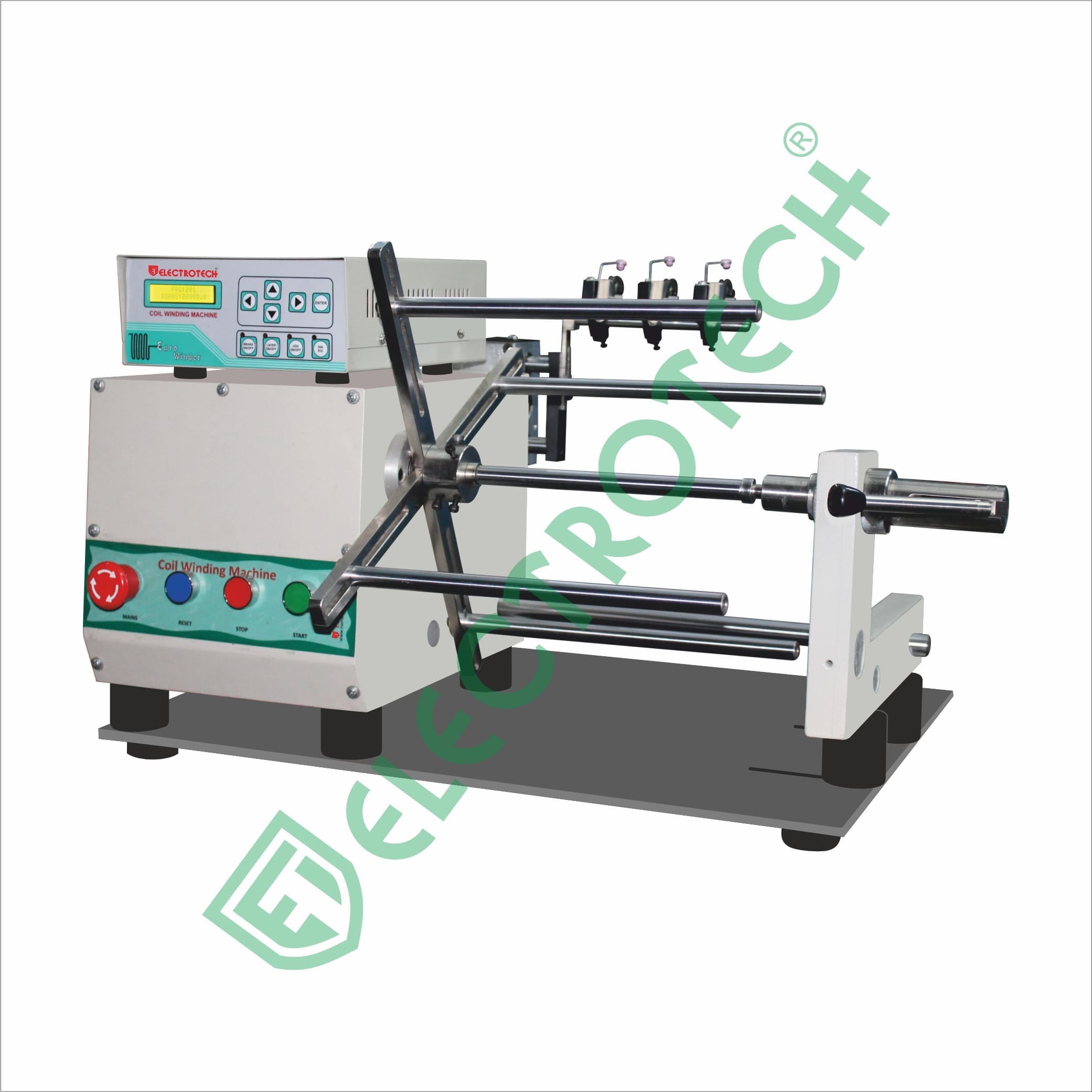

Euro-1sdx/12c

Model Euro-1sdx/12c
Wire Diameter [Max: Three wire at a time*] 0.2 mm to 0.8 mm
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 1200 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] Power Cord, Tool Kit

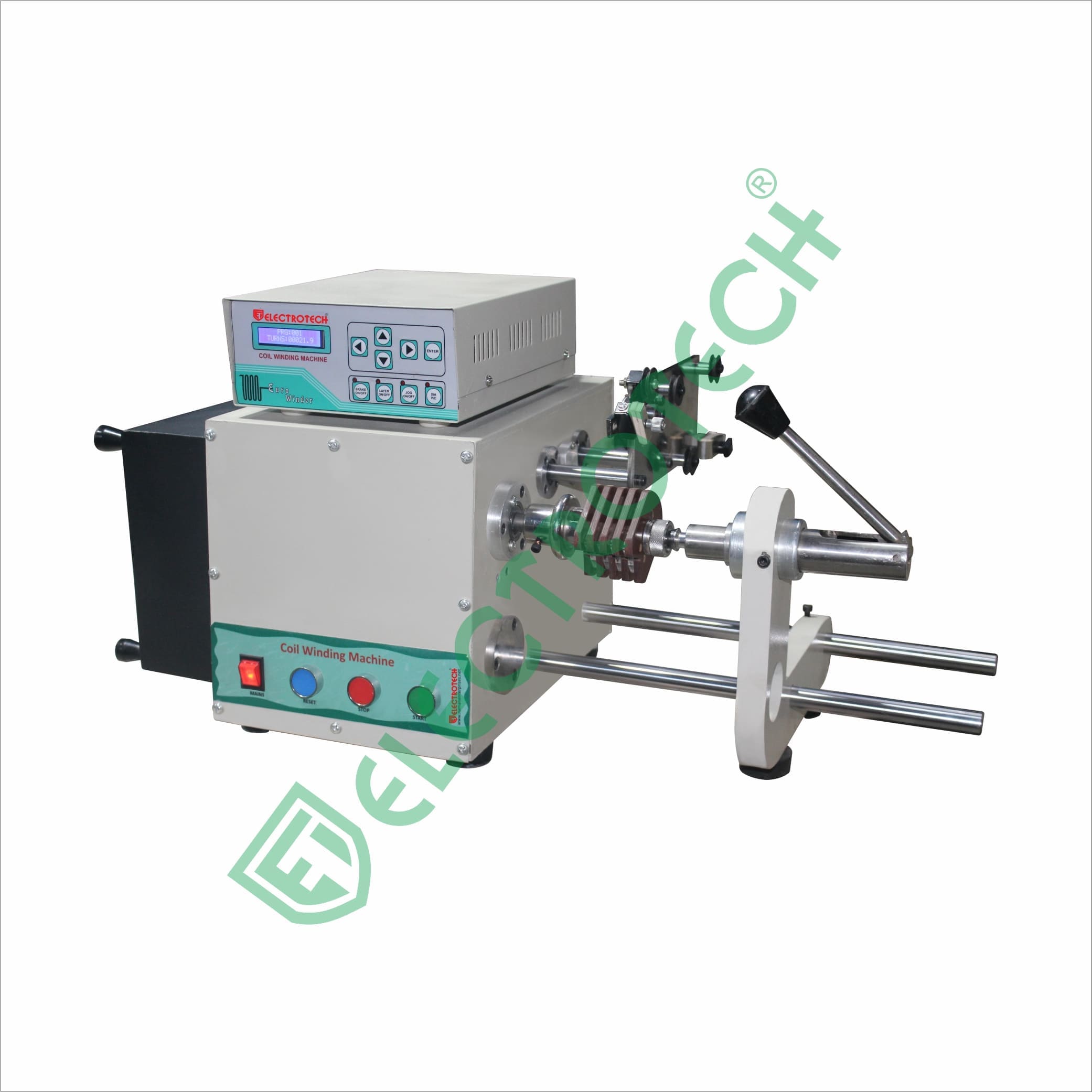

Euro-1sdxHD

Model Euro-1sdxHD
Wire Diameter [Single Wire] 0.02 mm to 1.6 mm
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 1800 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-1SDXHD-8C

Model Euro-1SDXHD-8C
Wire Diameter [Max: Eight wire at a time*] 0.02 mm to 0.6 mm (Copper)
0.02 mm to 0.8 mm (Aluminium)
Winding Width 140 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 1500 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-1sHD

Model Euro-1sHD
Wire Diameter [Single Wire] 0.2 mm to 1.2 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 1200 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] Power Cord, Tool Kit

Euro-1sHD With Base

Model Euro-1sHD With Base
Wire Diameter [Single Wire] 0.2 mm to 1.2 mm
Winding Width 140 mm
Bobin Swing Dia 300 mm
Winding Speed [Max.] 1200 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] Power Cord, Tool Kit

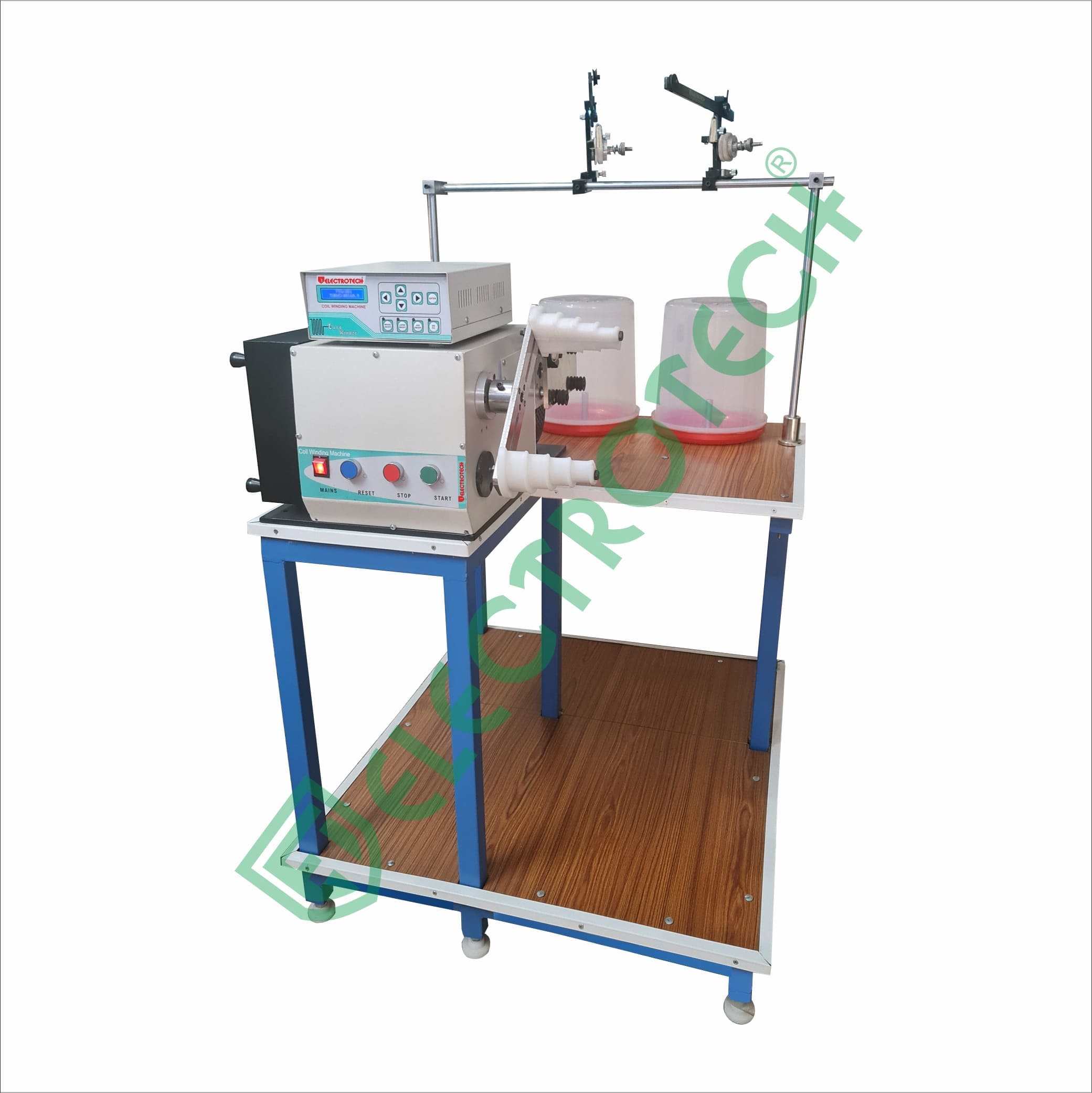

Euro-1SHD-2W

Model Euro-1SHD-2W
Wire Diameter [Wire Diameter [Max: Two wire at a time*] 0.02 mm to 0.8 mm (Copper)
0.02 mm to 1.2 mm (Aluminium)
Winding Width 140 mm
Bobin Swing Dia 300 mm
Winding Speed [Max.] 1500 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detecto Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Suppl 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-1sSC

Model Euro-1sSC
Wire Diameter [Single Wire] 0.02 mm to 0.75 mm
Winding Width 149 mm
Speaker Coil Dia 1 inches to 6 inches
Winding Speed [Max.] 2500 RPM *
Winding Speed [Min.] 600 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Turn Accuracy + / - 0.1 turn
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit

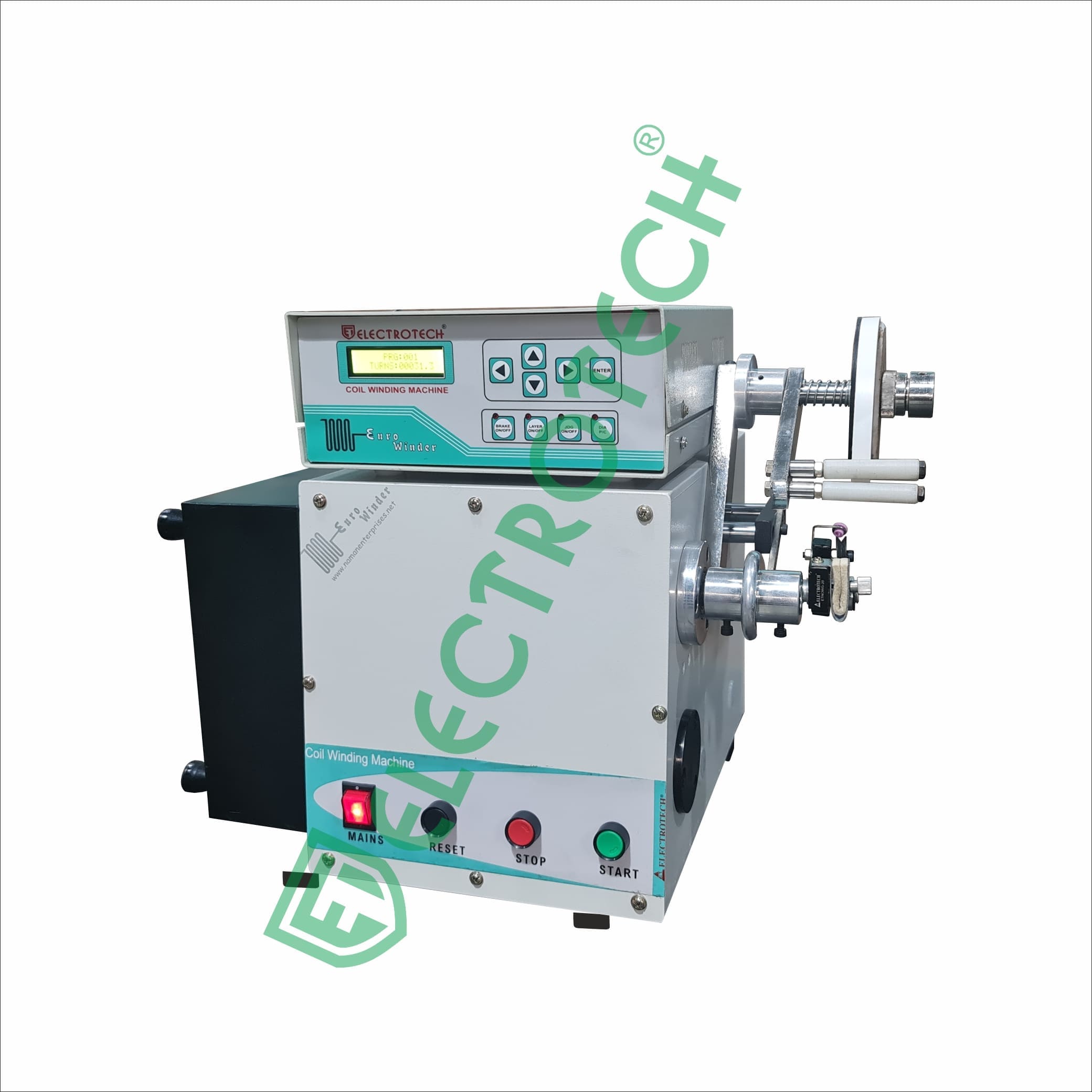

Euro-1sta

Model Euro-1sta
Wire Diameter [Single Wire] 0.02 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 6000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

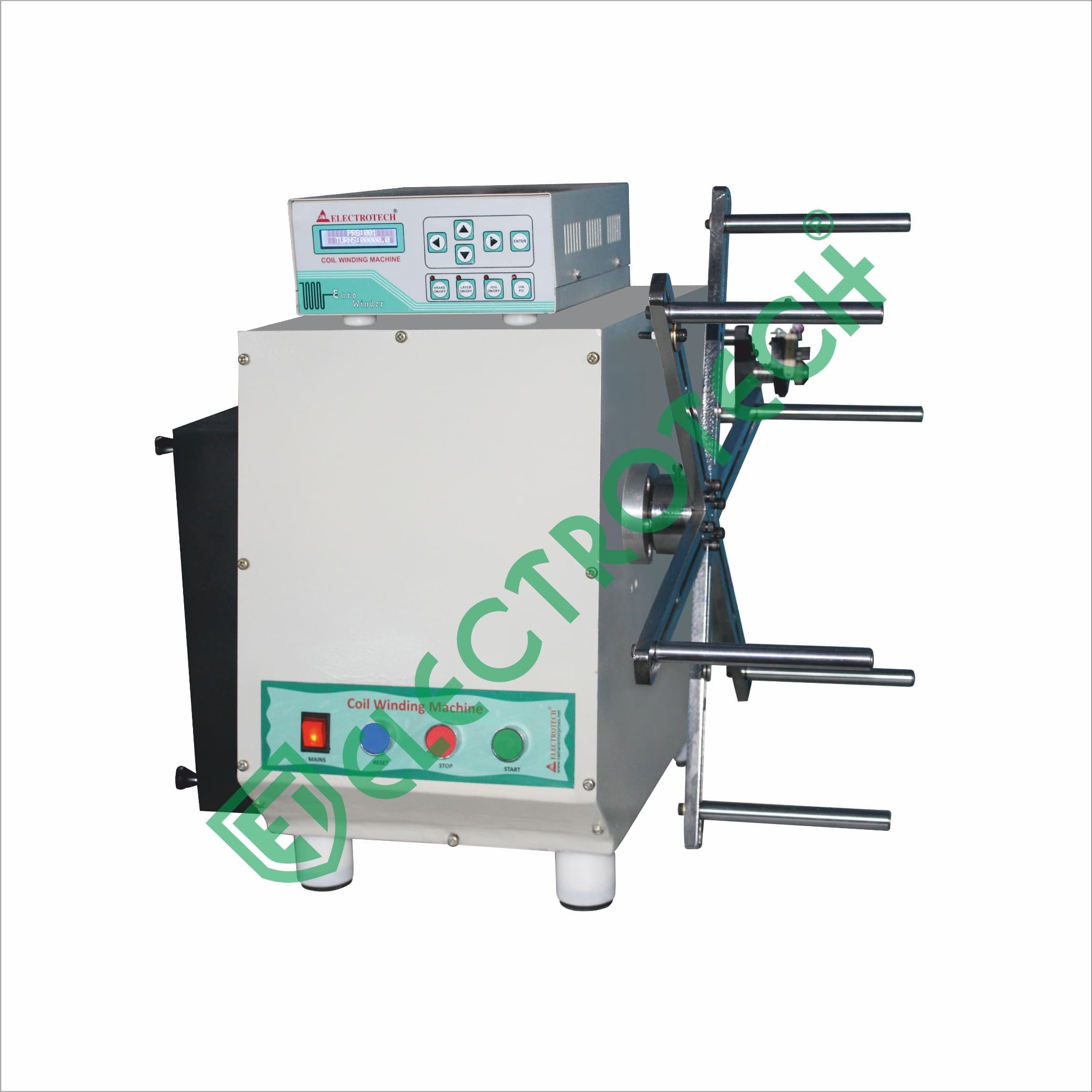

Euro-1stHD

Model Euro-1stHD
Wire Diameter [HD Model] 0.02 mm to 1.6 mm (Single Wire)
Winding Width 140 mm
Bobin Swing Dia 380 mm
Winding Speed [Max.] 1200 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 500 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

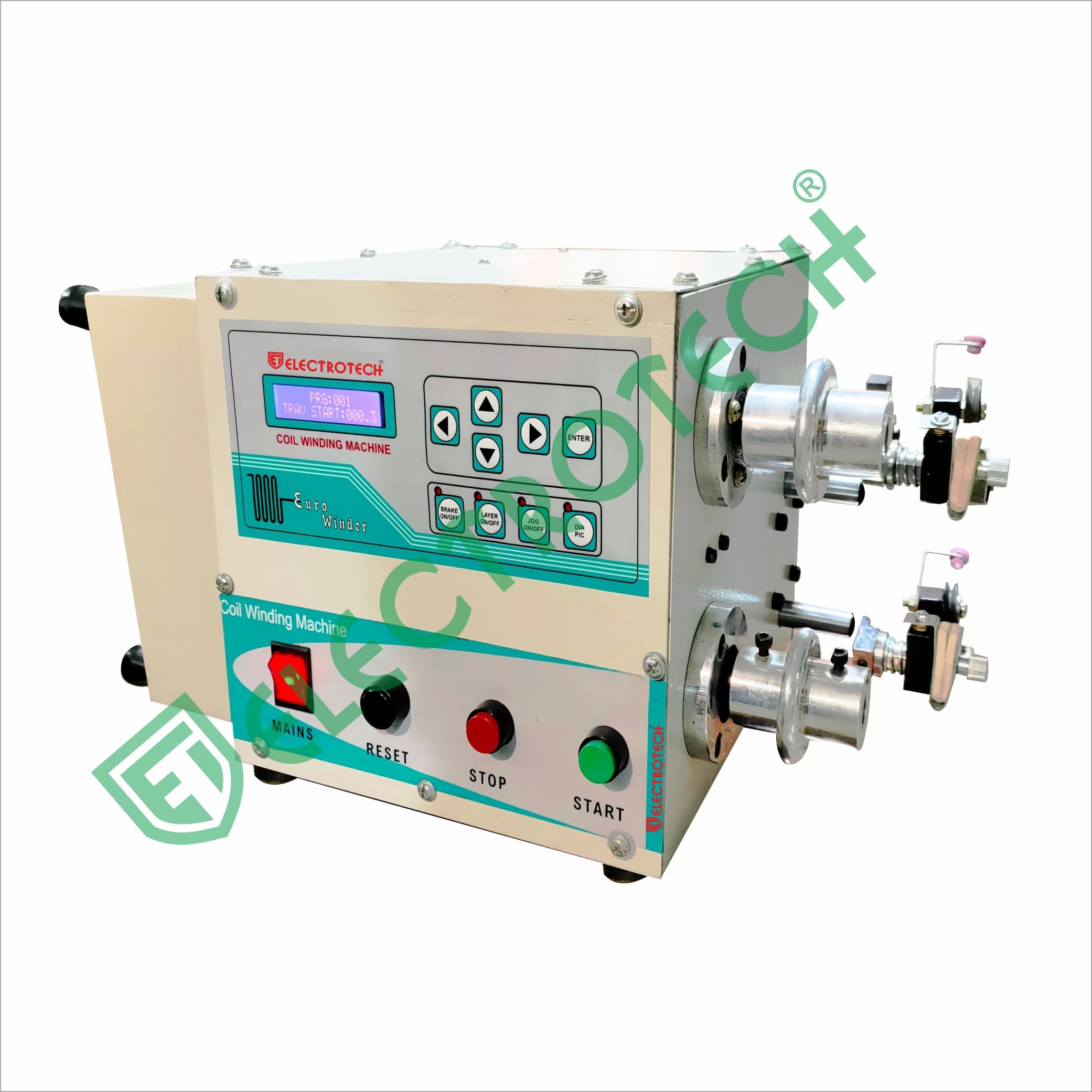

Euro-2sm

Model Euro-2sm
Wire Diameter [Single Wire] 0.02 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 6000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

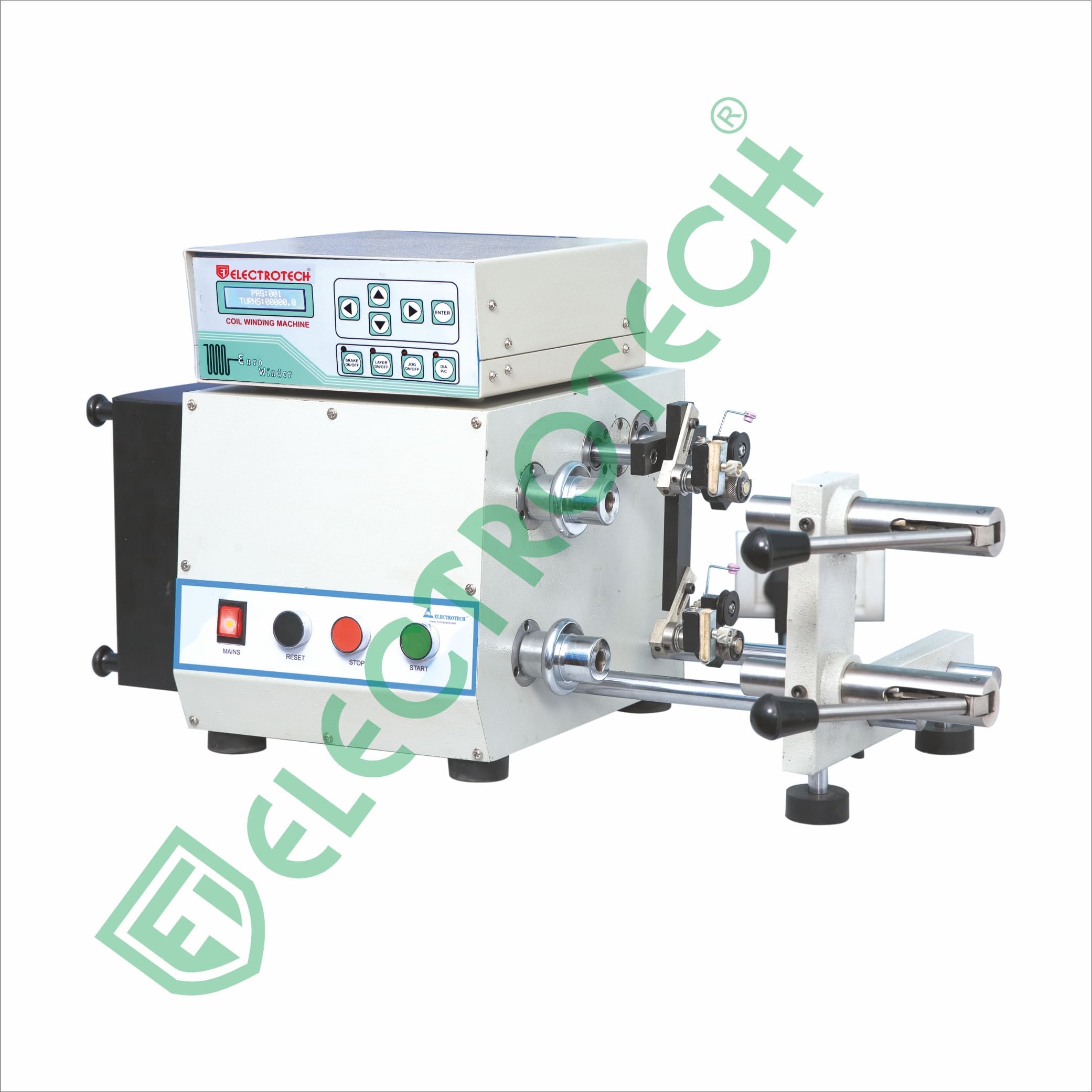

Euro-2sdx

Model Euro-2sdx
Wire Diameter [Single Wire] 0.02 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 5000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

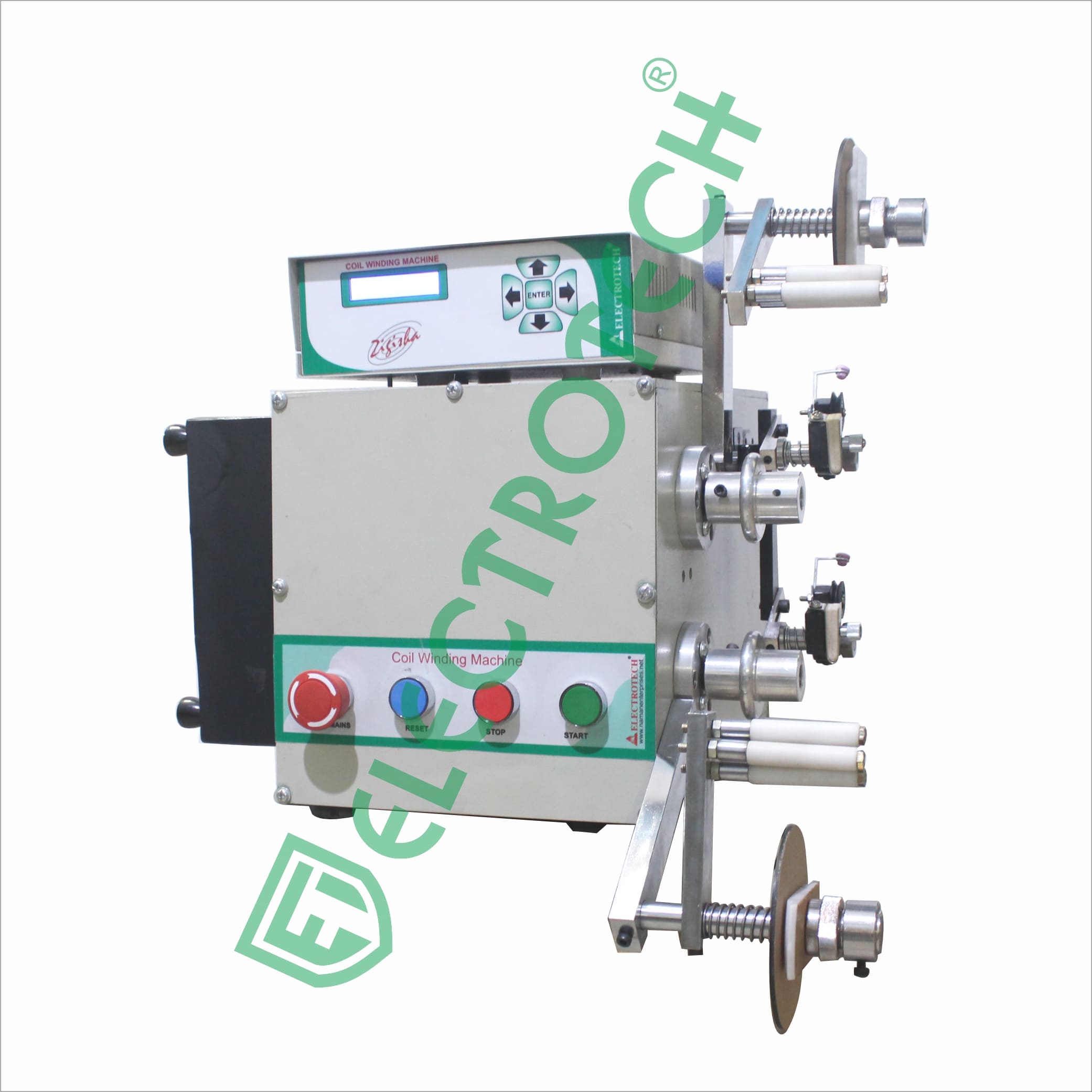

Euro-2sta

Model Euro-2sta
Wire Diameter [Max: Two wire at a time*] 0.2 mm to 0.6 mm
Winding Width 90 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 6000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro- 4s

Model Euro- 4s
Wire Diameter 0.02 mm to 0.6 mm
Winding Width 60 mm
Bobin Swing Dia 99 mm
Winding Speed [Max.] 4000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor

Euro-6st

Model Euro-6st
Wire Diameter 0.02 mm to 0.6 mm
Winding Width 99 mm
Bobin Swing Dia 50 mm
Winding Speed [Max.] 4000 RPM *
Display 16 X 2 Line LCD
Memory 499 Programs
Accelaration / Deceleration Variable
Total Taps 8 Taps
Turn Accuracy + / - 0.1 turn
Wire Cut Detector Optional
Disc Brake Electromagnetic
Power Rating 300 Watts
Main Supply 230V/50Hz
ACCESSORIES [STANDARD] De-reeler cum Tensioner, Spool Container, Power Cord, Tool Kit, Wire Cut Sensor
