Four Color Pneumatic Pad Printing Machines

Model	Euro-85/250fcc
No. of Colors	4
Doctoring Cup Dia [mm]	90
Print Speed [Max./Hrs]	1000
Cliche/Plate Size [mm]	100 x 250
Print Image Size [⌀ mm]	85
Product Height [mm]	200
Power Consumption [W]	50
Control System	PLC with HMI
Control Voltage	12/24 VDC
Drive	Electro Pneumatic
Operating Pressure[Bar]	6-8
Air Consumption [Lit/min.]	140
Power Supply	230 VAC/50Hz.
Dimensions (Approx)[mm]	Length - 1010
	Width - 1090
	Height - 1405
Weight kgs (Approx)[Kgs]	192

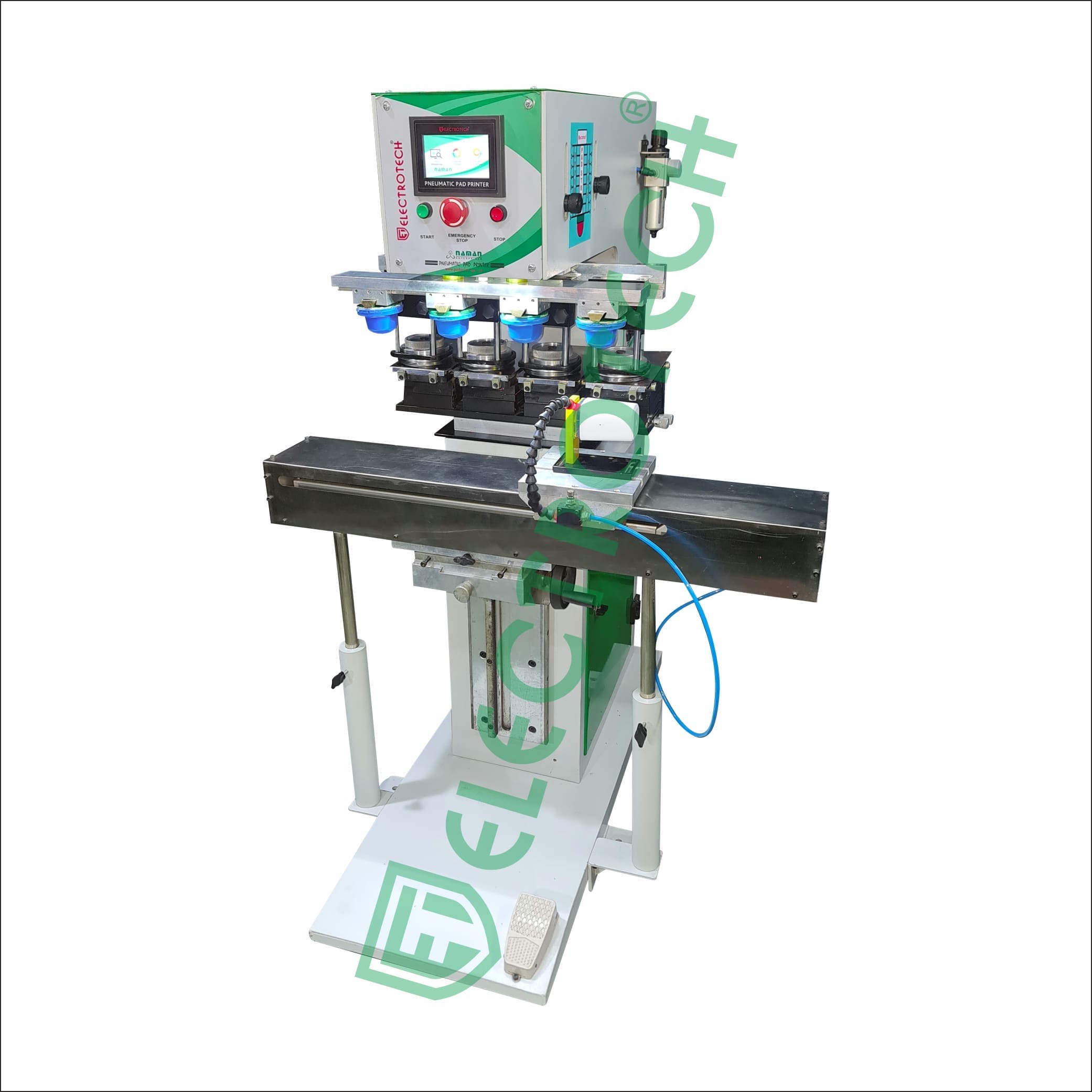

Model	Euro-85/250fcs
No. of Colors	4
Doctoring Cup Dia [mm]	90
Print Speed [Max./Hrs]	420
Cliche/Plate Size [mm]	100 x 250
Print Image Size [⌀ mm]	85
Product Height [mm]	400
Power Consumption [W]	50
Control System	PLC with HMI
Control Voltage	12/24 VDC
Drive	Electro Pneumatic
Operating Pressure[Bar]	6-8
Air Consumption [Lit/min.]	100
Power Supply	230 VAC/50Hz.
Dimensions (Approx)[mm]	Length - 1015
	Width - 900
	Height - 1410
Weight kgs (Approx)[Kgs]	187

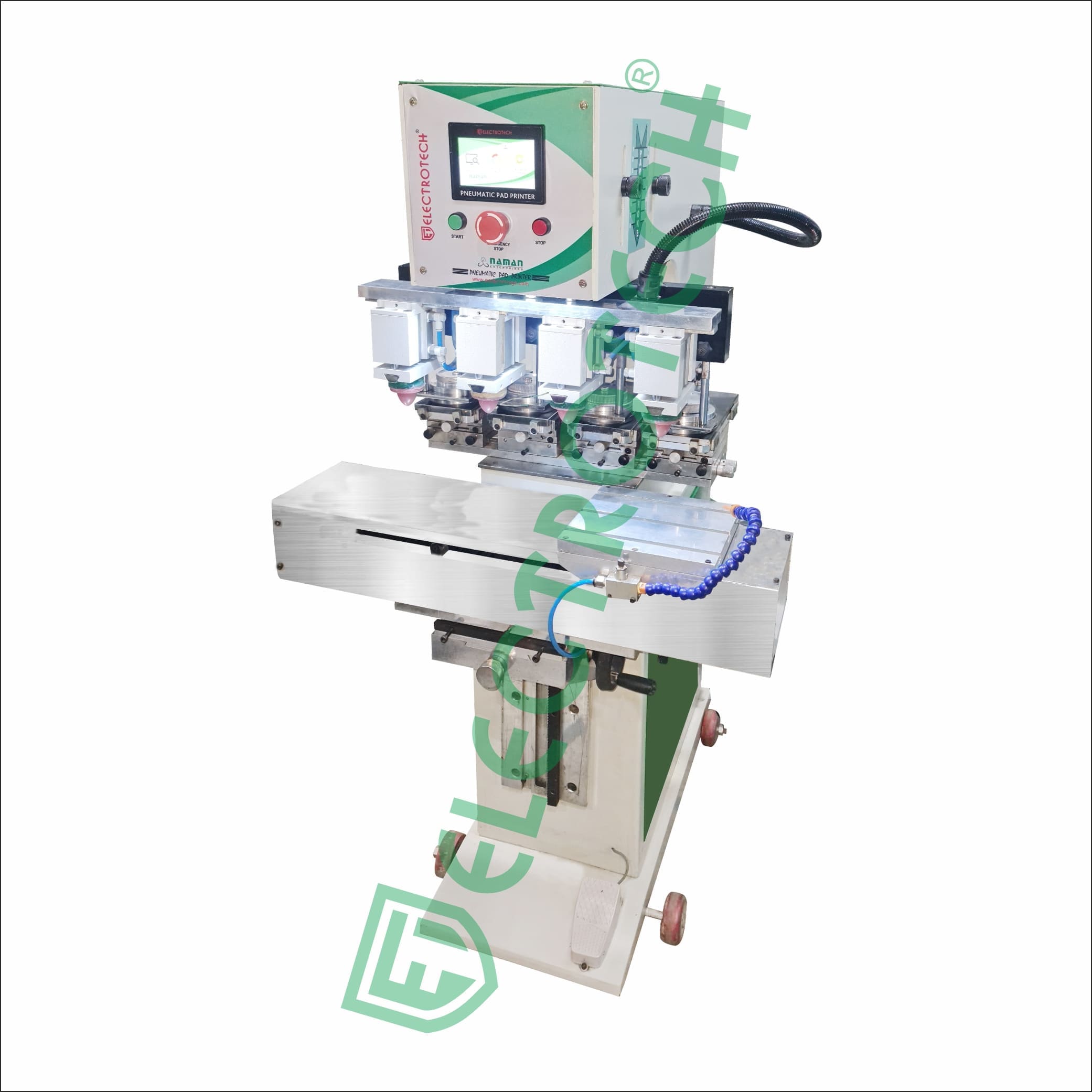

Model	Euro-85/250fcs-ic
No. of Colors	4
Doctoring Cup Dia [mm]	90
Print Speed [Max./Hrs]	360
Cliche/Plate Size [mm]	100 x 250
Print Image Size [⌀ mm]	85
Product Height [mm]	200
Power Consumption [W]	50
Control System	PLC with HMI
Control Voltage	12/24 VDC
Drive	Electro Pneumatic
Operating Pressure[Bar]	6-8
Air Consumption [Lit/min.]	140
Power Supply	230 VAC/50Hz.
Dimensions (Approx)[mm]	Length - 760
	Width - 705
	Height - 1345
Weight kgs (Approx)[Kgs]	160
