Single Color Pneumatic Pad Printing Machines

Pneumatic Pad Printing Machines Single Color Pneumatic Pad Printing Machines

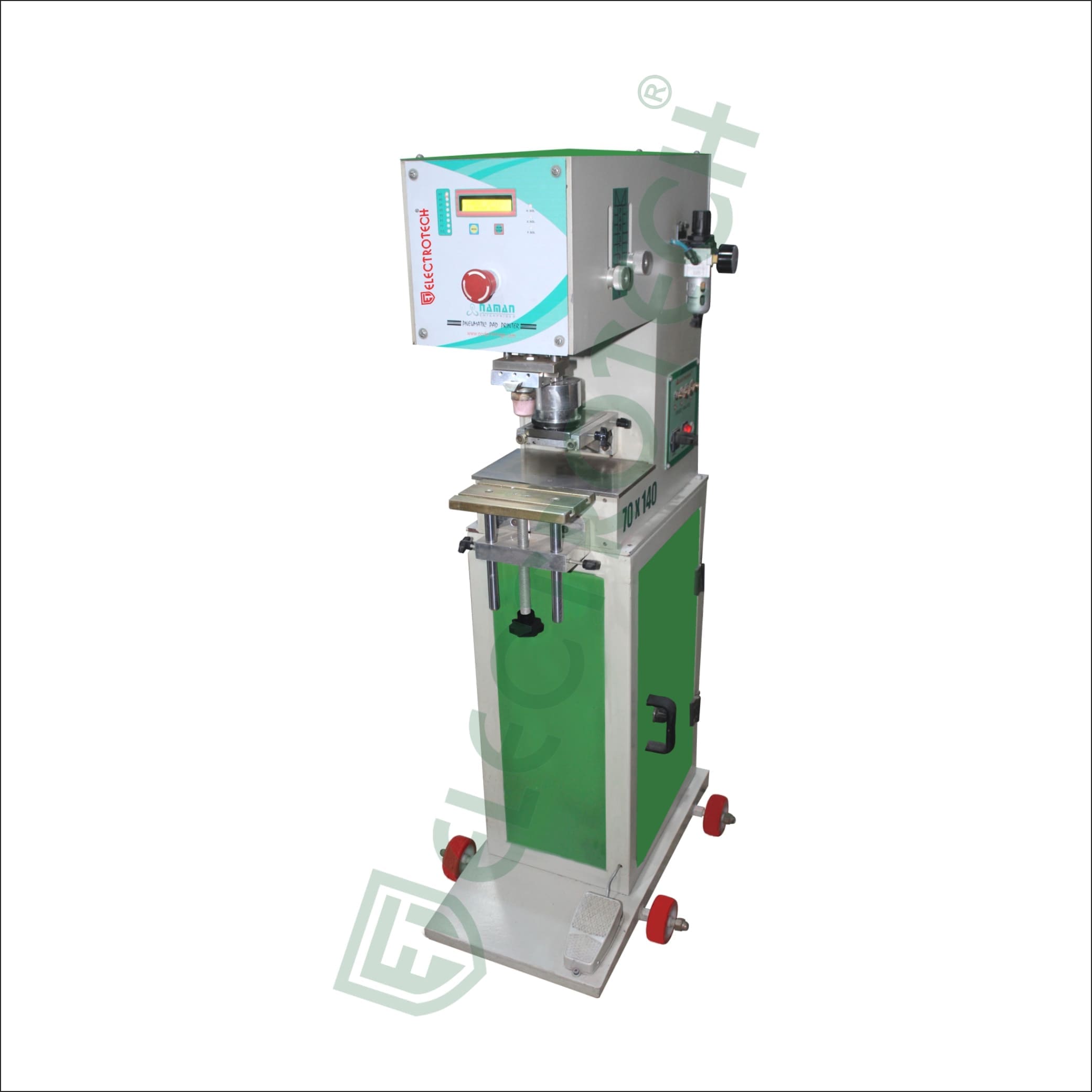

Euro-55pdx

Enquire Now
Model Euro-55pdx
No. of Colors 1
Doctoring Cup Dia [mm] 60
Print Speed [Max./Hrs] 2400
Cliche/Plate Size [mm] 70 x 140
Print Image Size [ ⌀ mm] 55
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 5-7
Air Consumption [Lit/min.] 45
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 580
Width - 410
Height - 1210
Weight kgs (Approx)[Kgs] 68

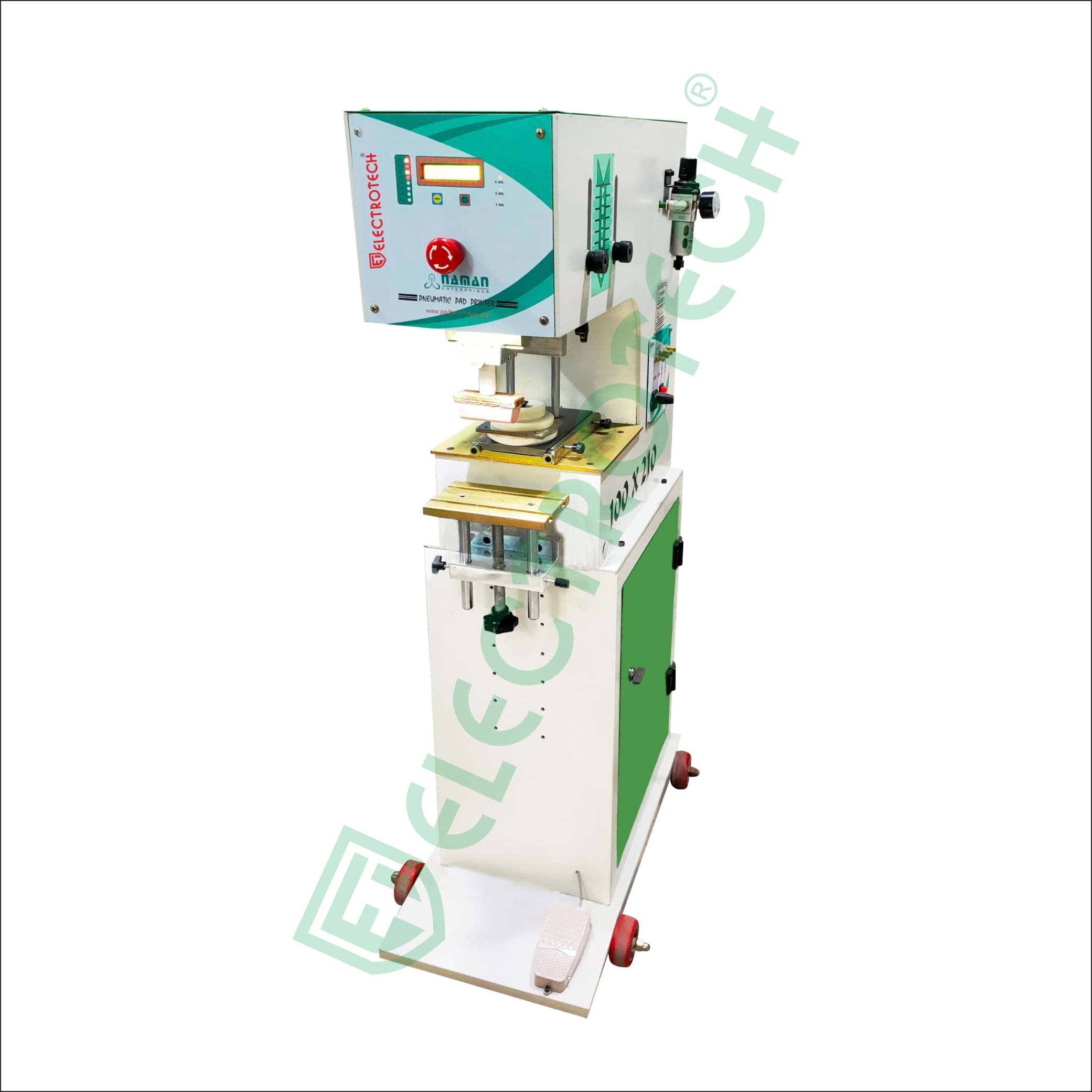

Euro-85/210pdx

Enquire Now
Model Euro-85/210pdx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 2400
Cliche/Plate Size [mm] 100x210
Print Image Size [ ⌀ mm] 85
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 60
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 700
Width - 420
Height - 1225
Weight kgs (Approx)[Kgs] 90

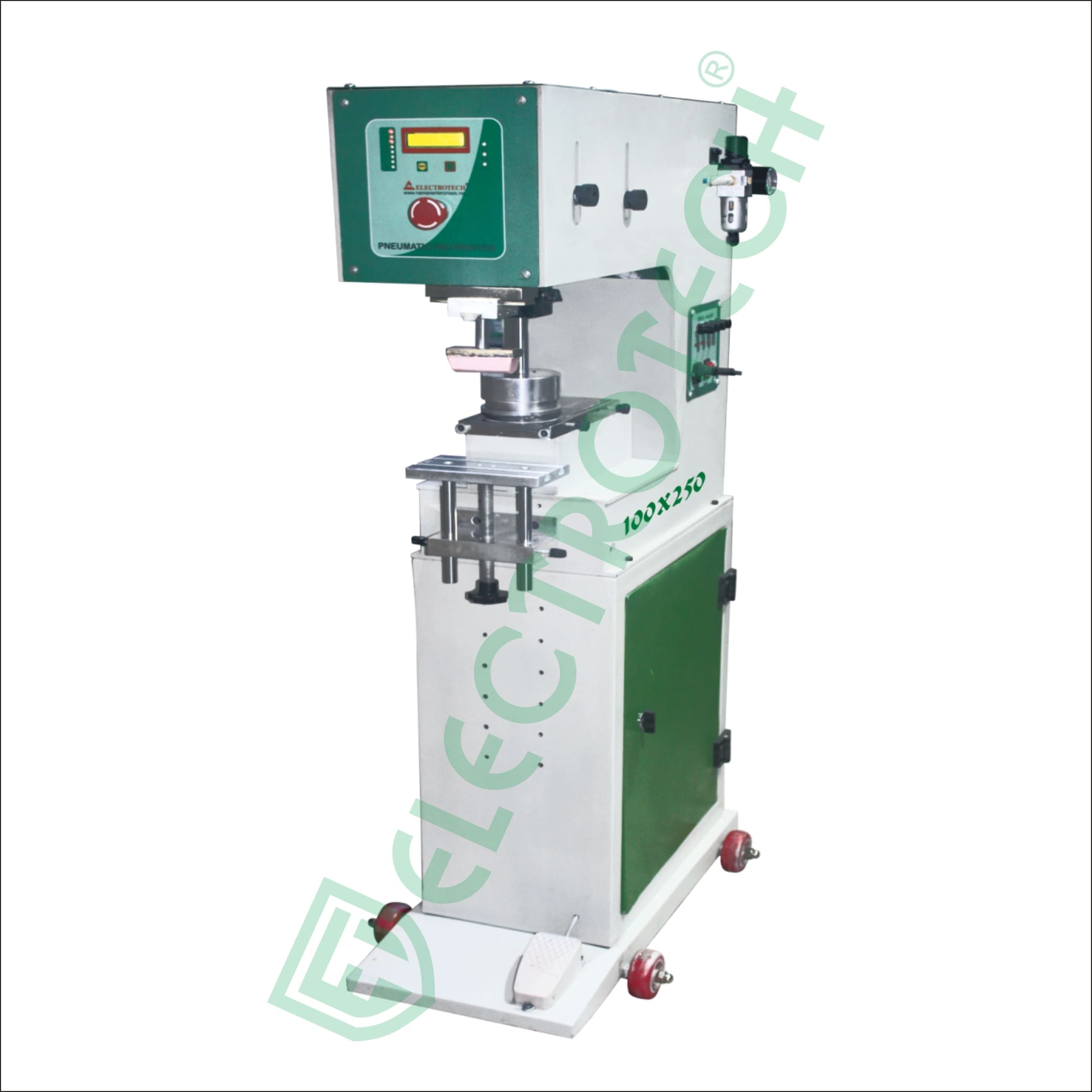

Euro-85/250pdx

Enquire Now
Model Euro-85/250pdx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 2200
Cliche/Plate Size [mm] 100x250
Print Image Size [ ⌀ mm] 85
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 70
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 720
Width - 430
Height - 1350
Weight kgs (Approx)[Kgs] 100

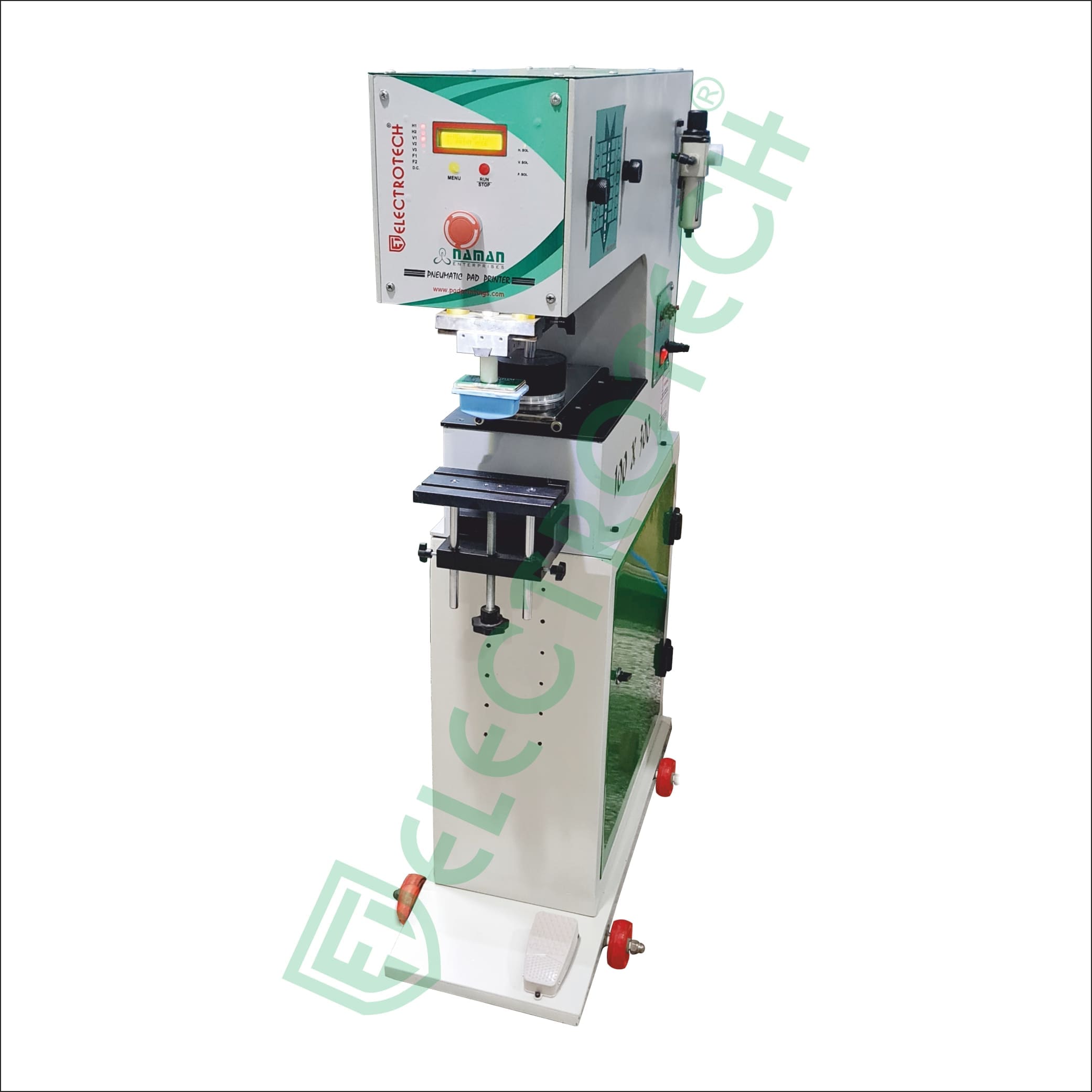

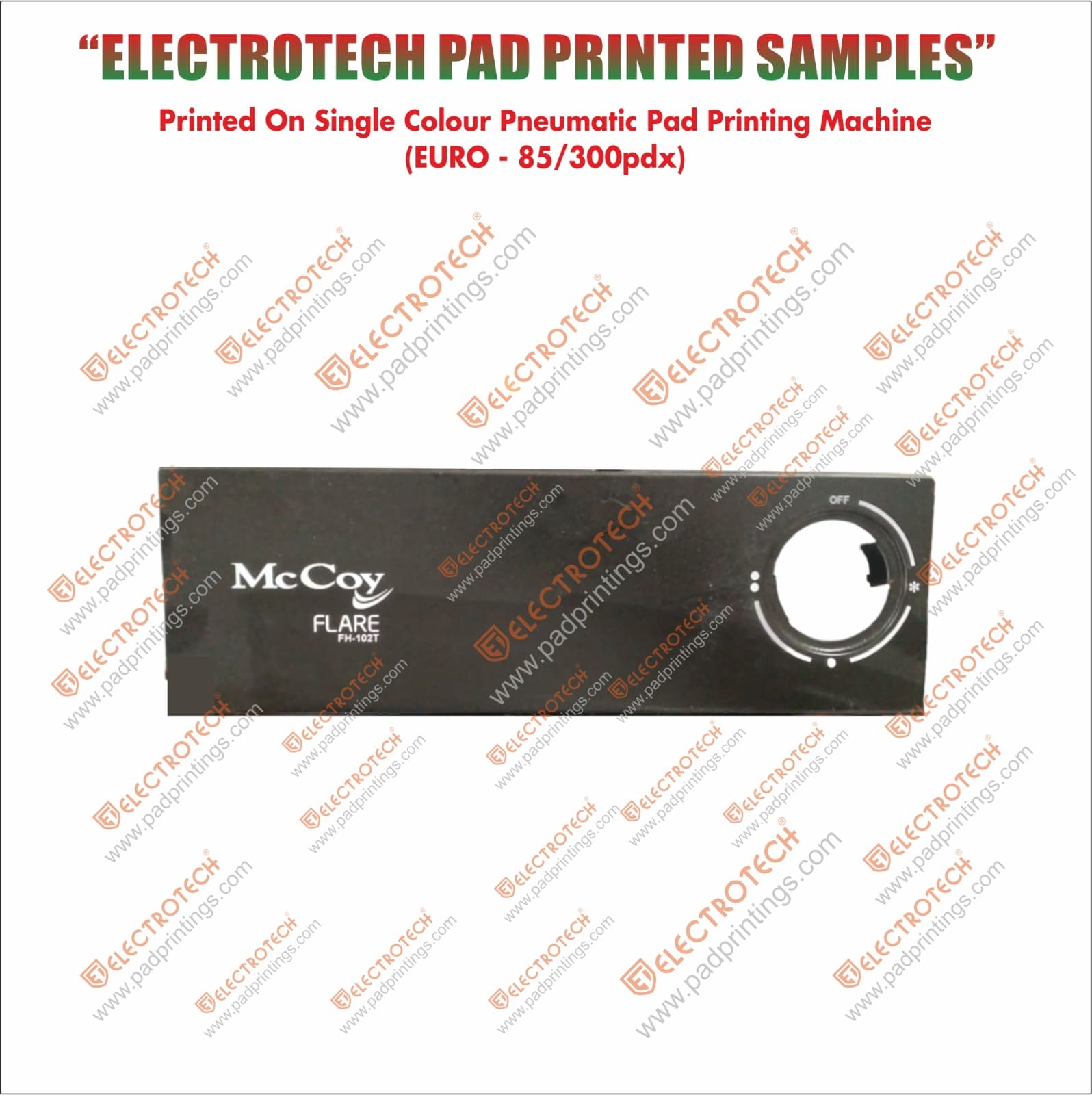

Euro-85/300pdx

Enquire Now
Model Euro-85/300pdx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 1200
Cliche/Plate Size [mm] 100x300
Print Image Size [ ⌀ mm] 85 or 60x 150
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 80
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 700
Width - 510
Height - 1225
Weight kgs (Approx)[Kgs] 110

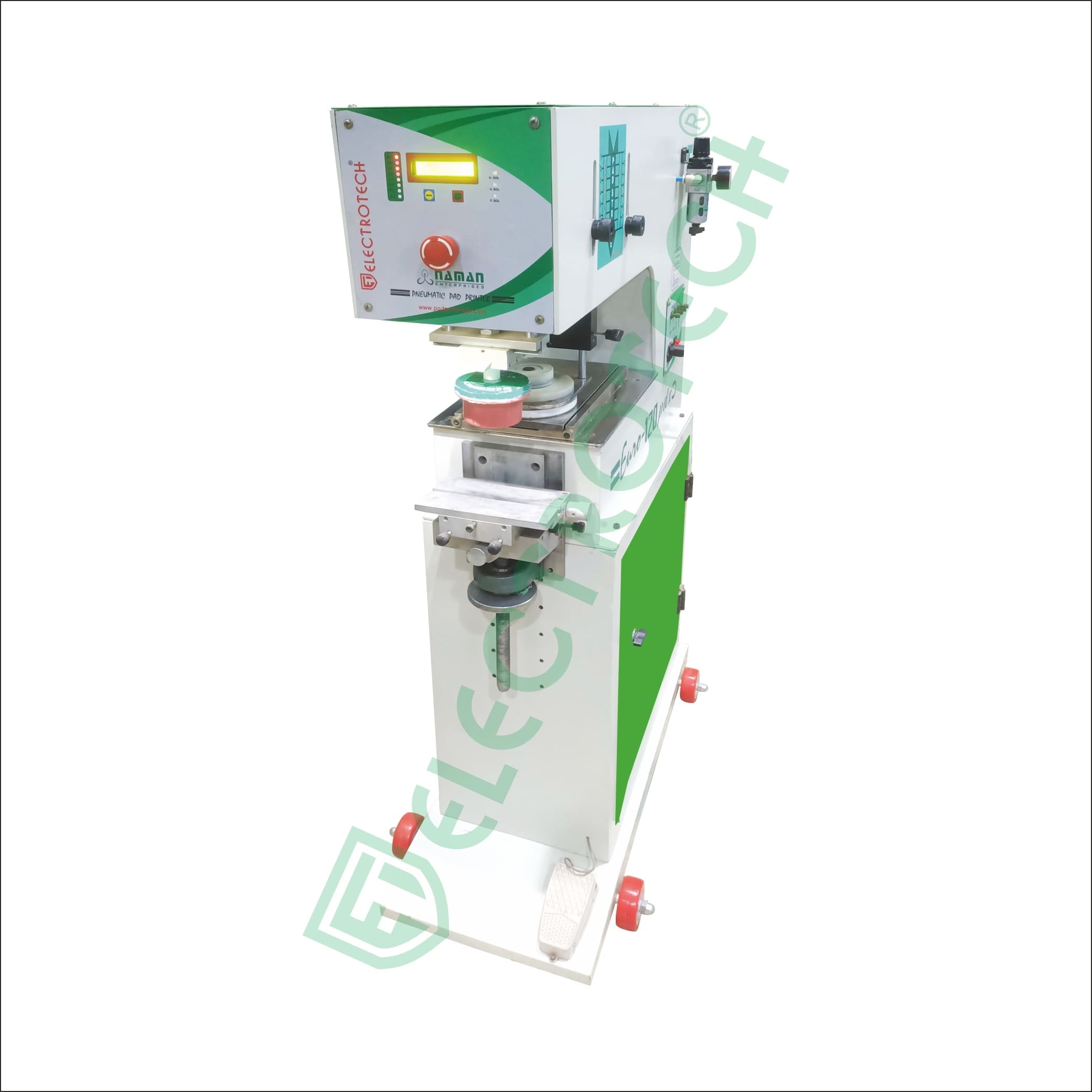

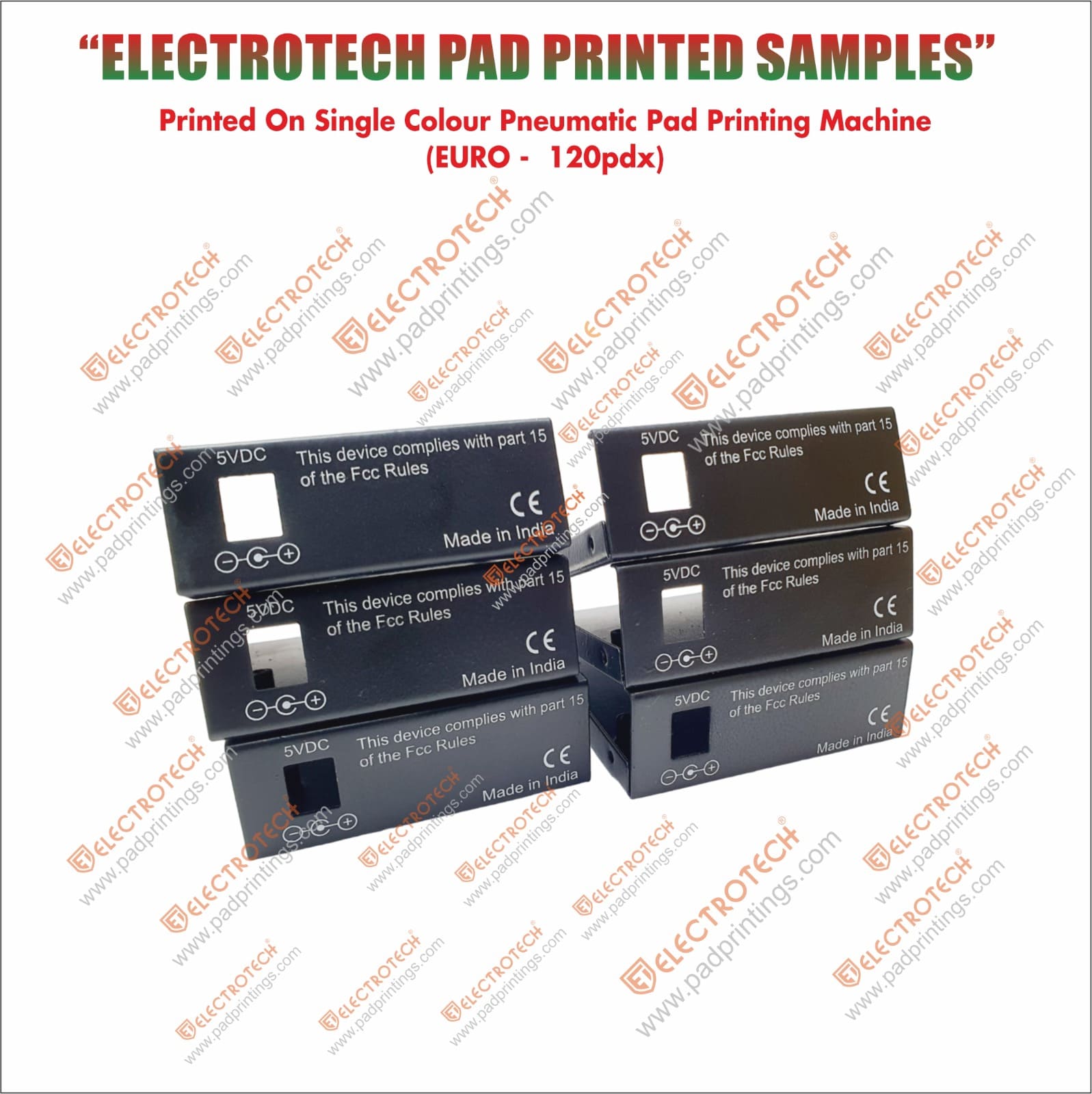

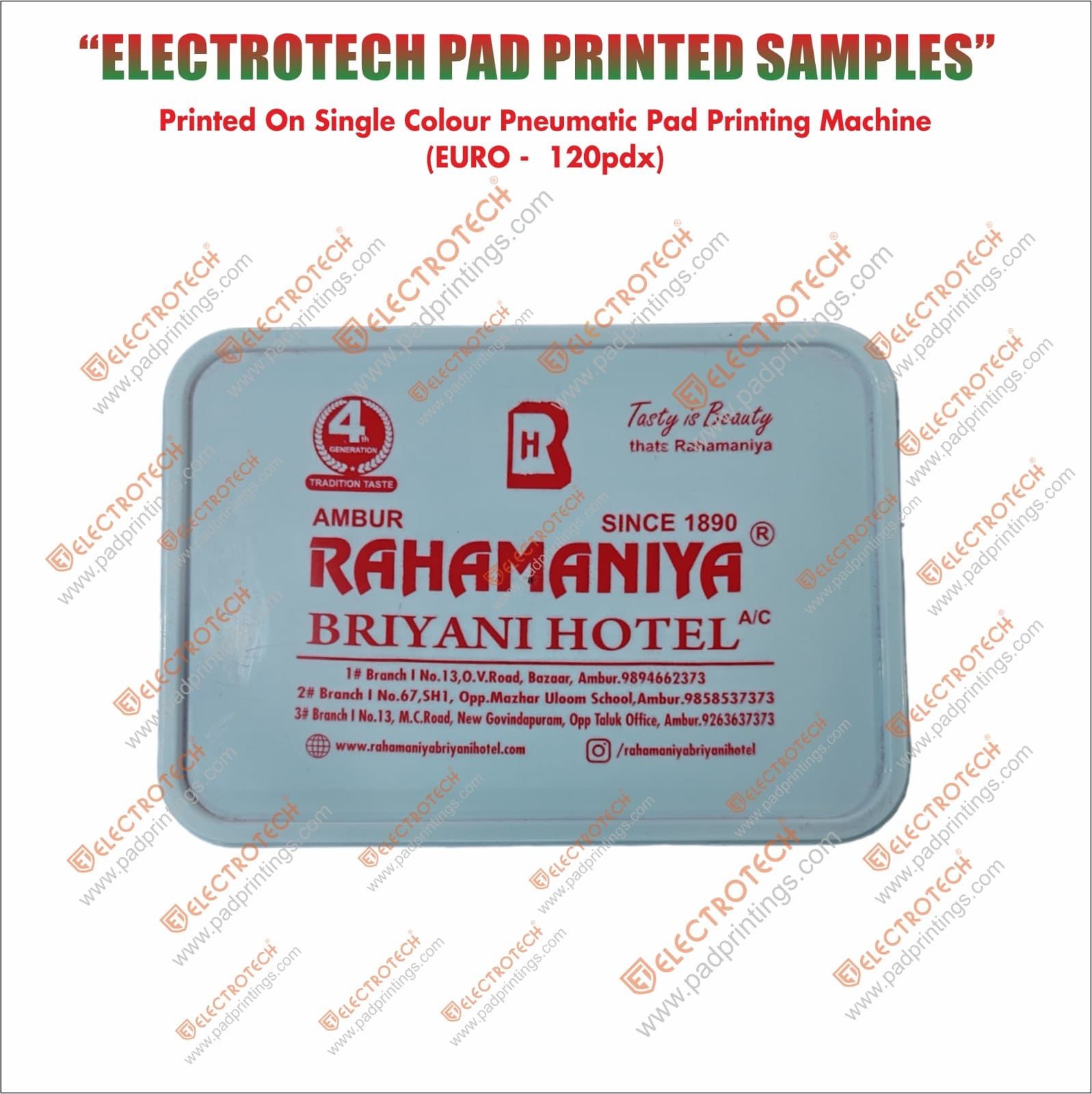

Euro-120pdx

Enquire Now
Model Euro-120pdx
No. of Colors 1
Doctoring Cup Dia [mm] 125
Print Speed [Max./Hrs] 1500
Cliche/Plate Size [mm] 150x300
Print Image Size [ ⌀ mm] 120
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 80
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 810
Width - 470
Height - 1290
Weight kgs (Approx)[Kgs] 130

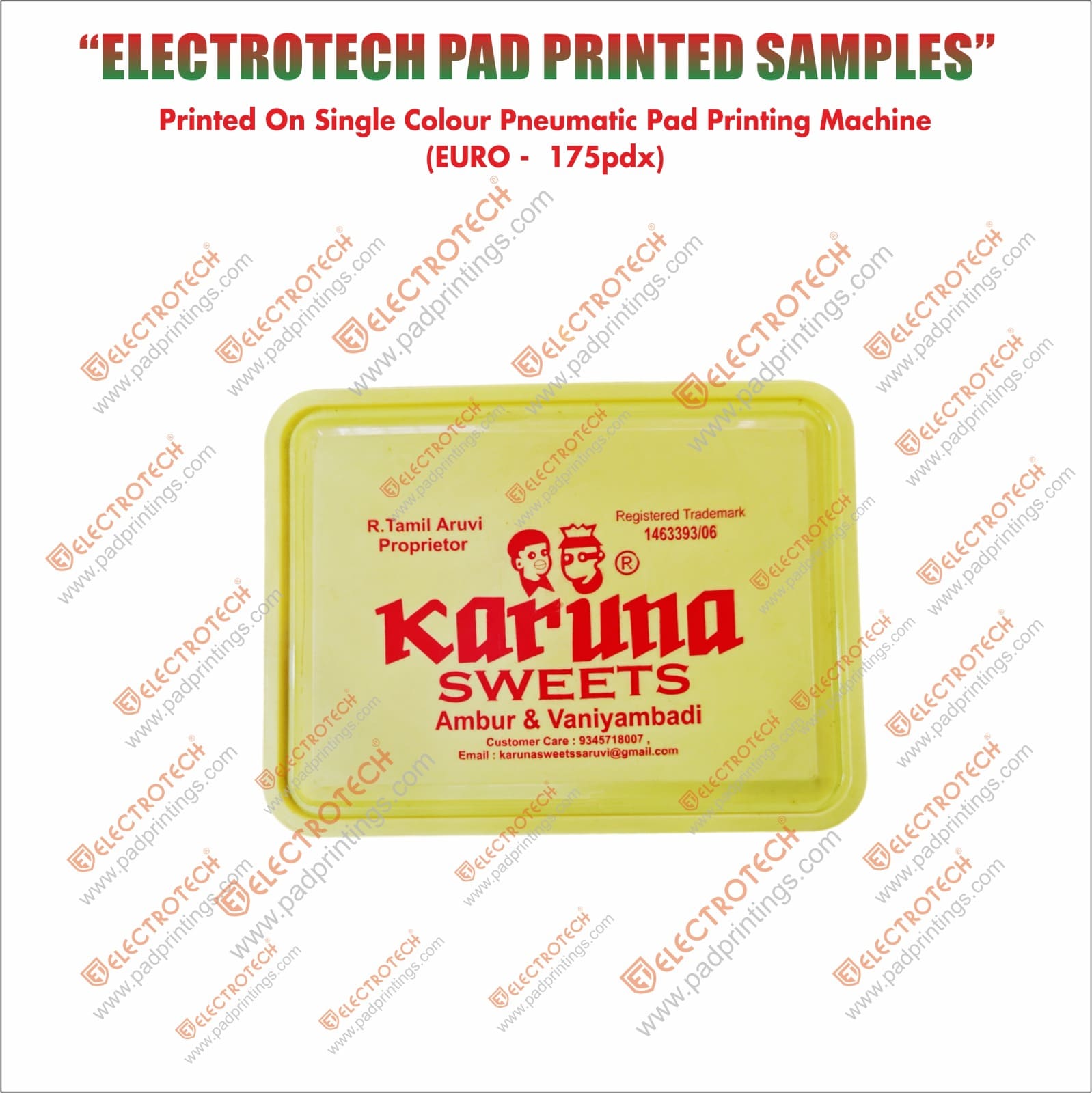

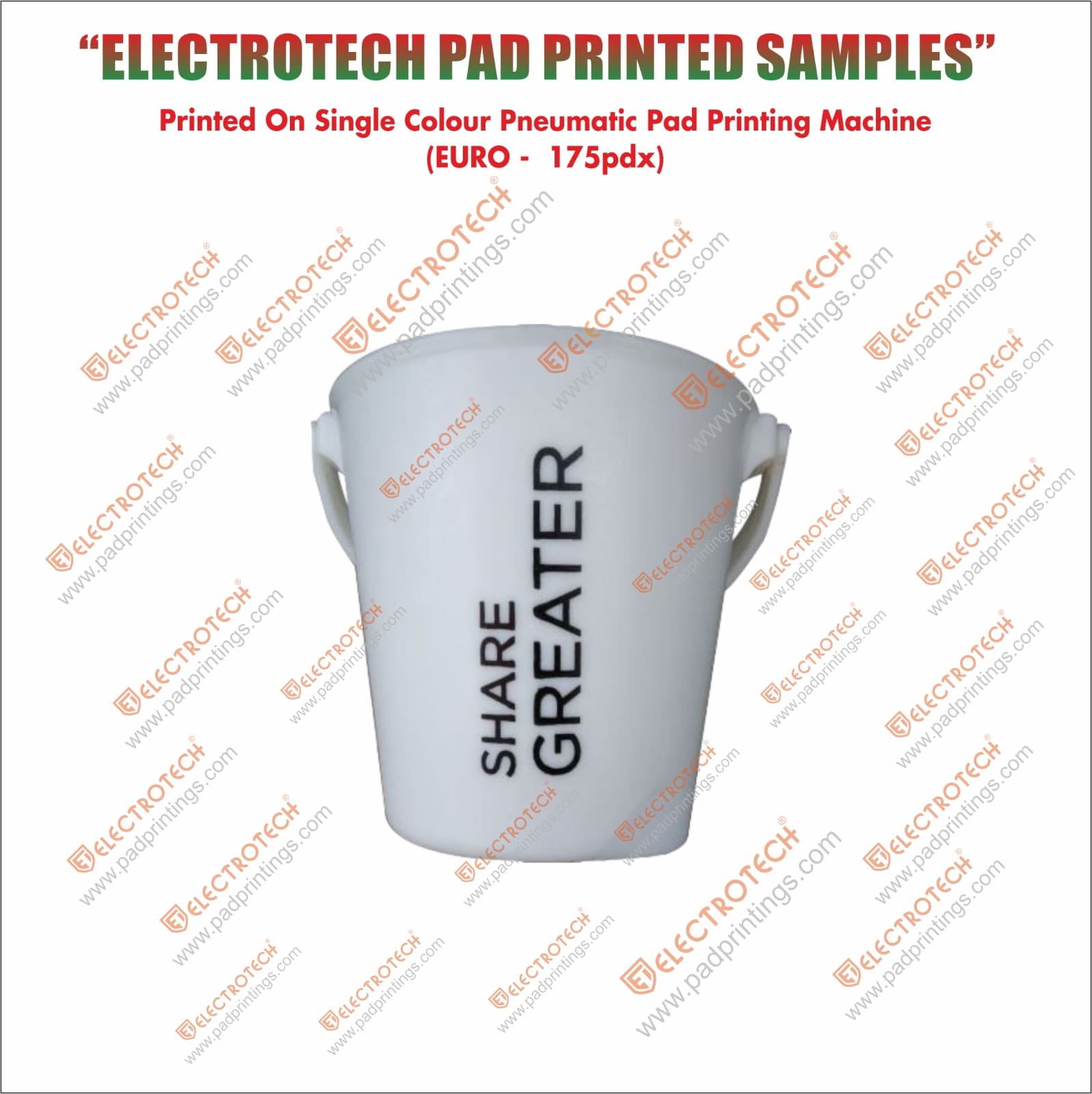

Euro-175pdx

Enquire Now
Model Euro-175pdx
No. of Colors 1
Doctoring Cup Dia [mm] 175
Print Speed [Max./Hrs] 1000
Cliche/Plate Size [mm] 200 x 500
Print Image Size [ ⌀ mm] 123 x 161 or ⌀ 175
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 8-10
Air Consumption [Lit/min.] 100
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 1220
Width - 560
Height - 1370
Weight kgs (Approx)[Kgs] 178

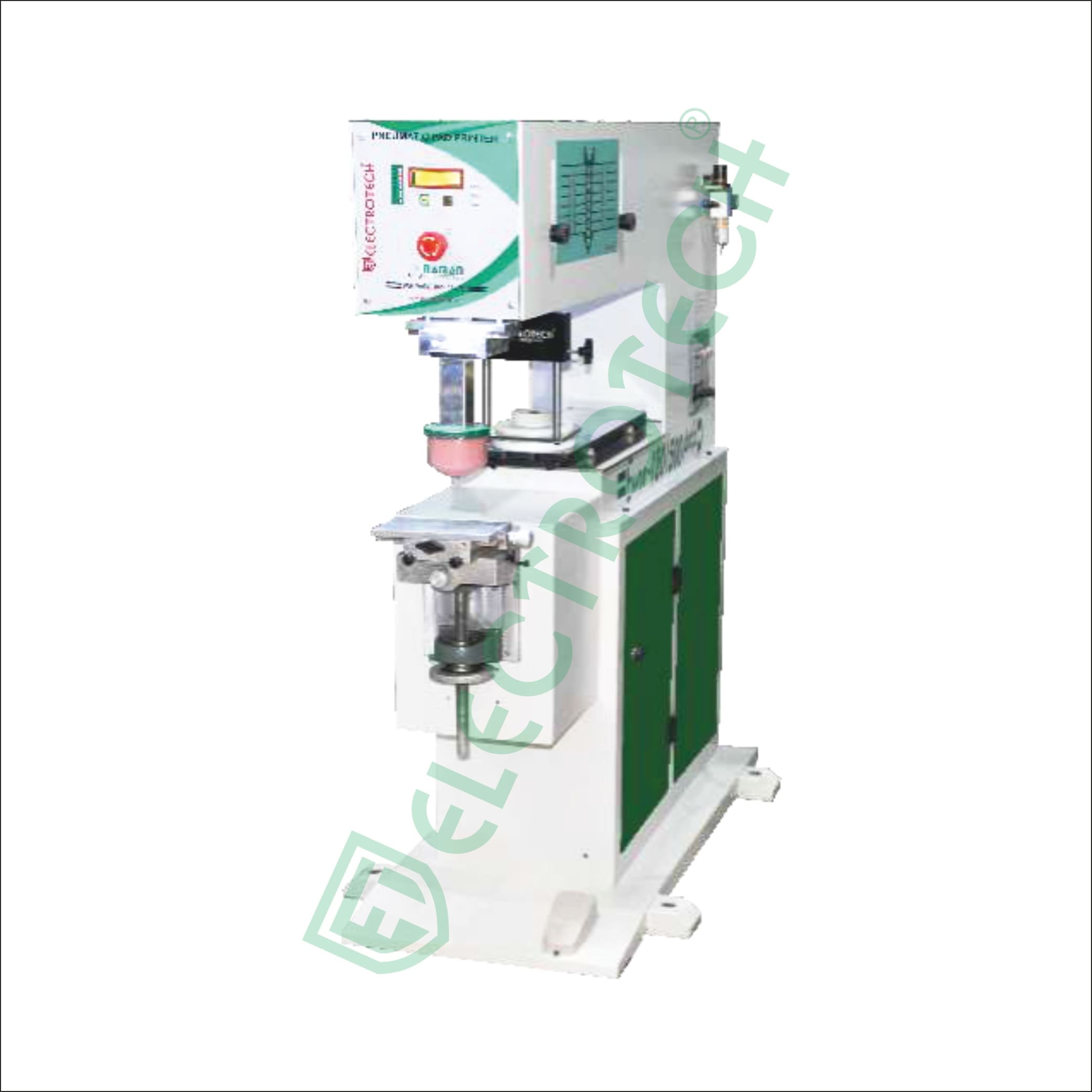

Euro-120/500pdx

Enquire Now
Model Euro-120/500pdx
No. of Colors 1
Doctoring Cup Dia [mm] 125
Print Speed [Max./Hrs] 800
Cliche/Plate Size [mm] 150 x 500
Print Image Size [ ⌀ mm] 84 x 300 or ⌀ 120
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 8-10
Air Consumption [Lit/min.] 120
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 1070
Width - 625
Height - 1380
Weight kgs (Approx)[Kgs] 168

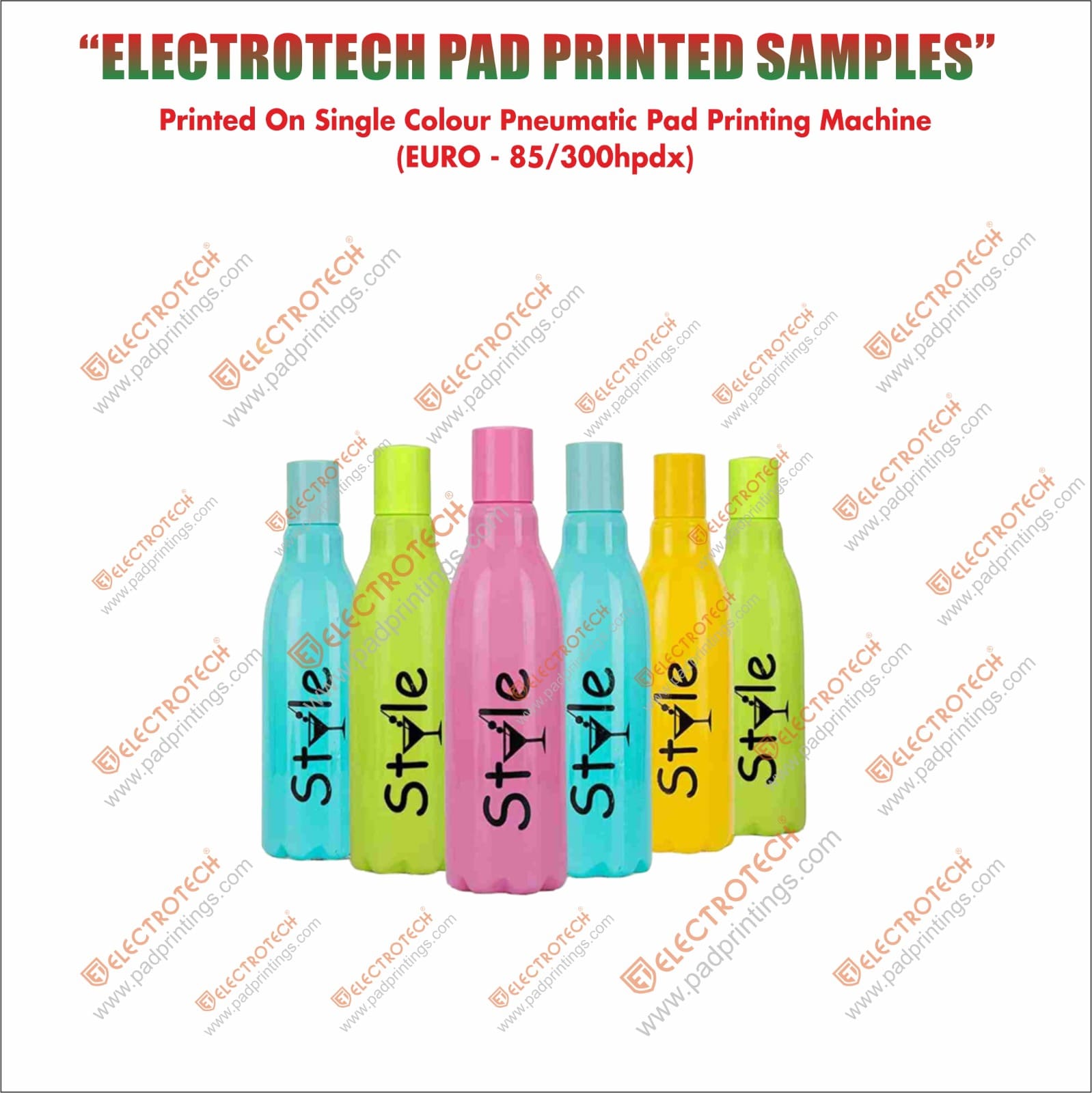

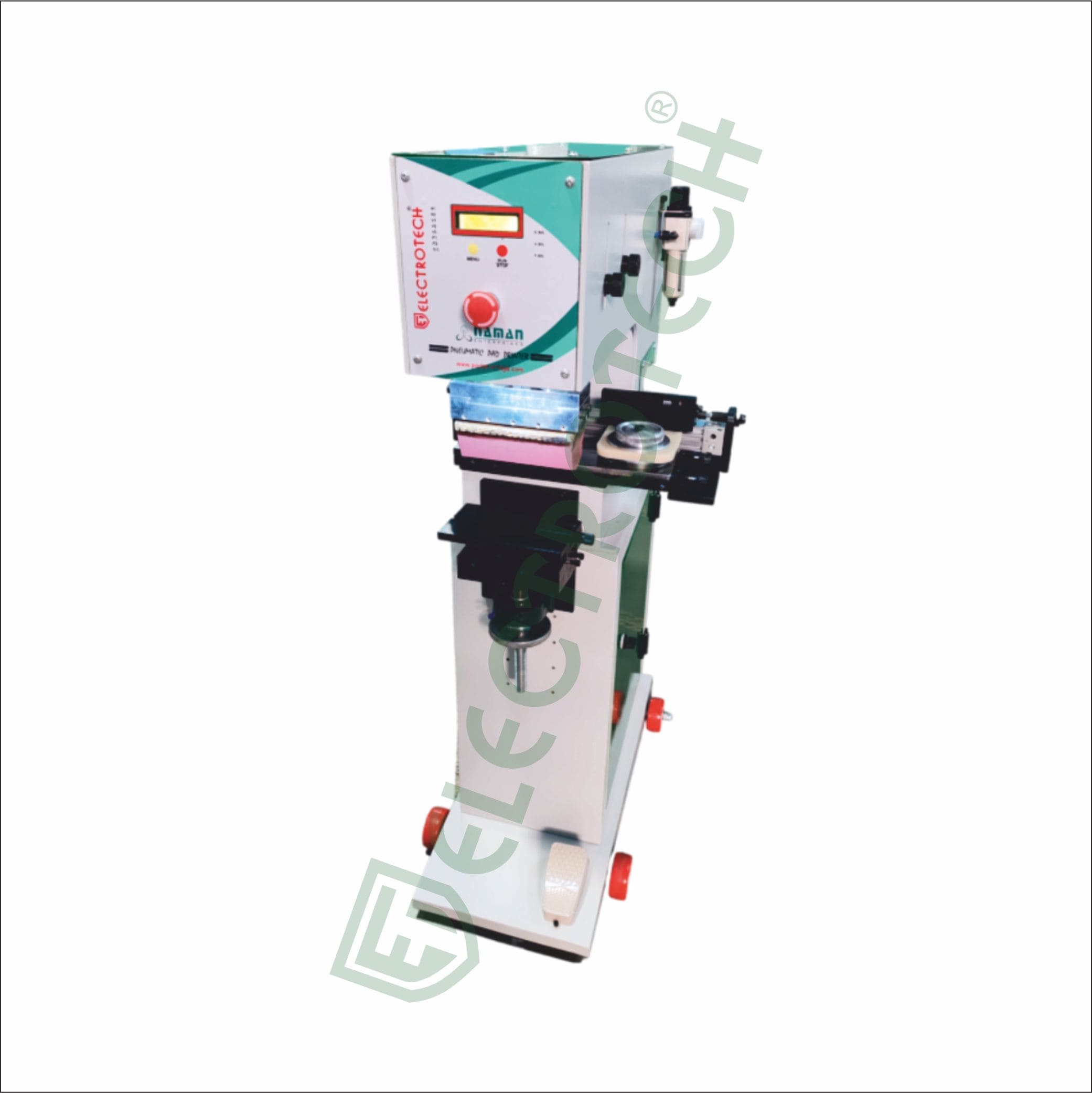

Euro-85/300hpdx

Enquire Now
Model Euro-85/300hpdx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 1000
Cliche/Plate Size [mm] 100 x 300
Print Image Size [ ⌀ mm] 60 x 125 or ⌀ 85
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 110
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 760
Width - 460
Height - 1300
Weight kgs (Approx)[Kgs] 113

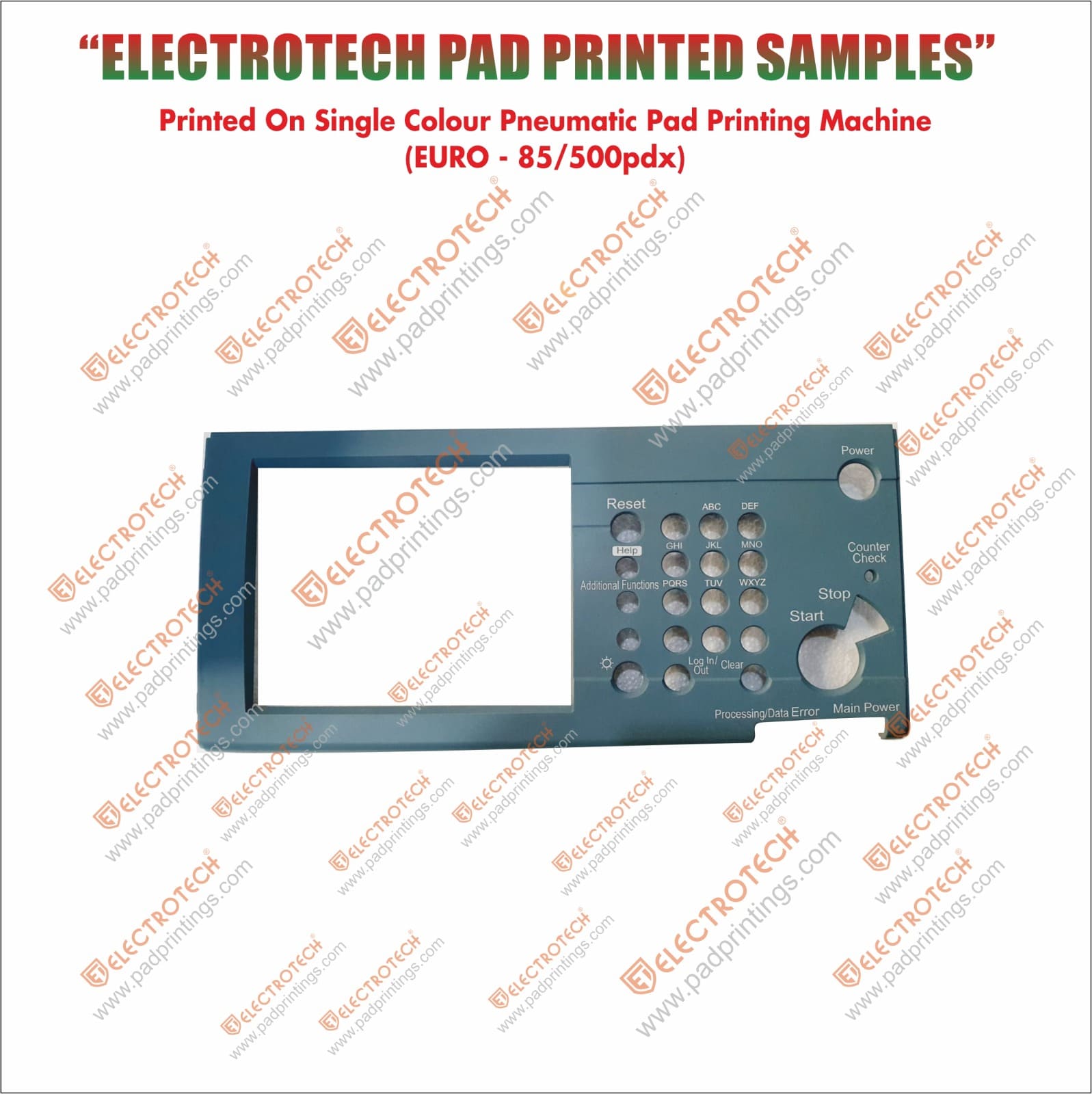

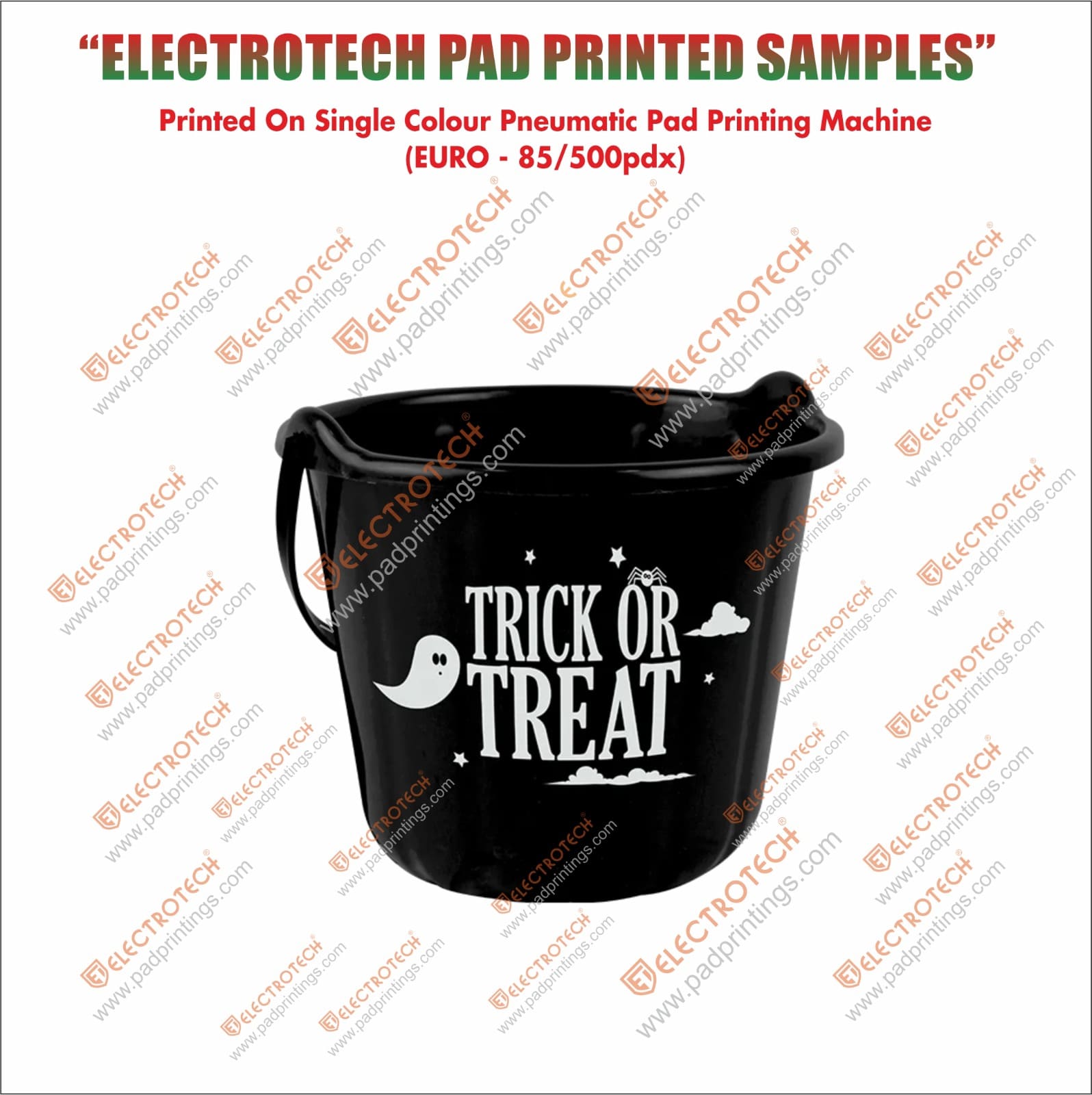

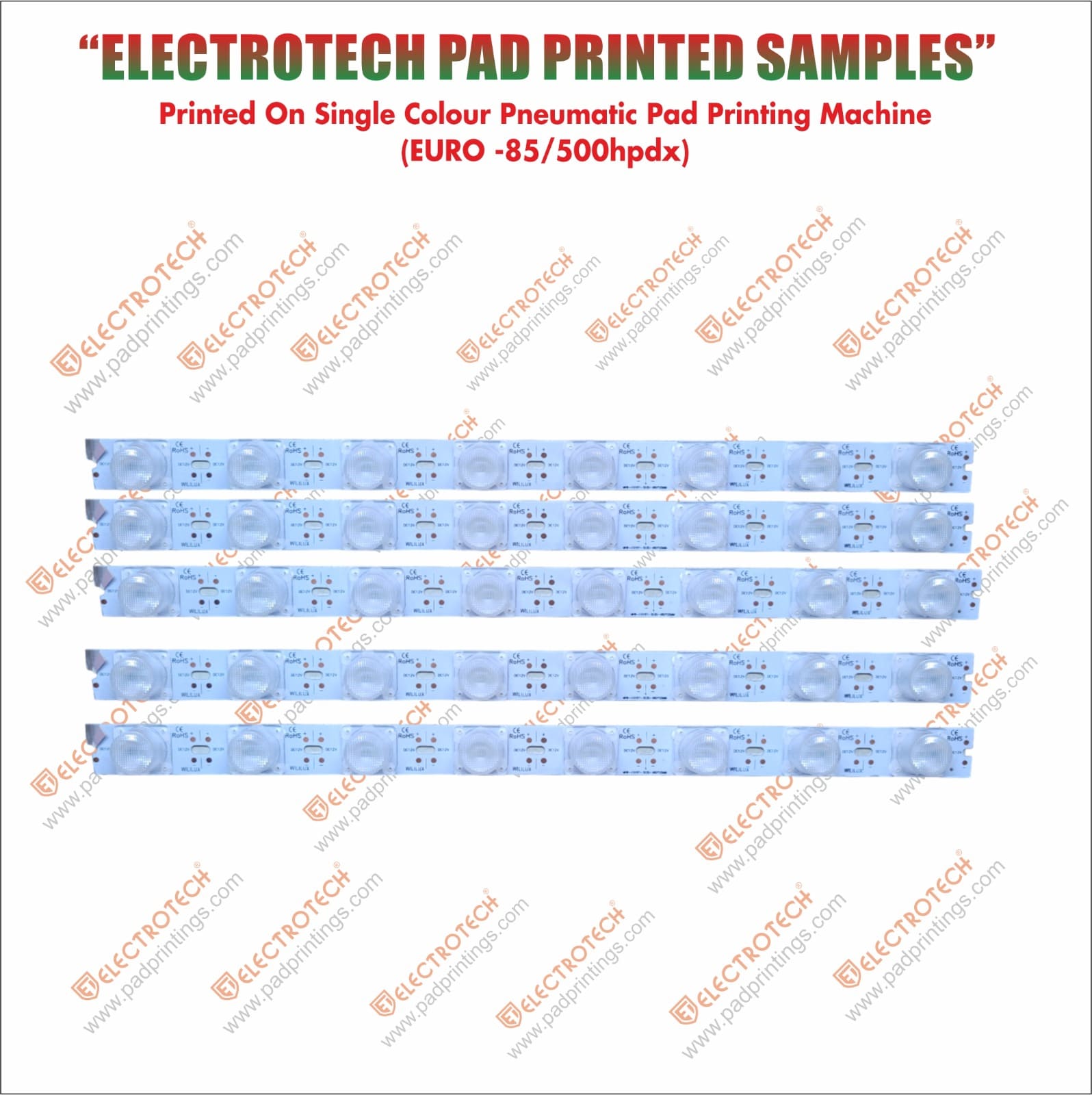

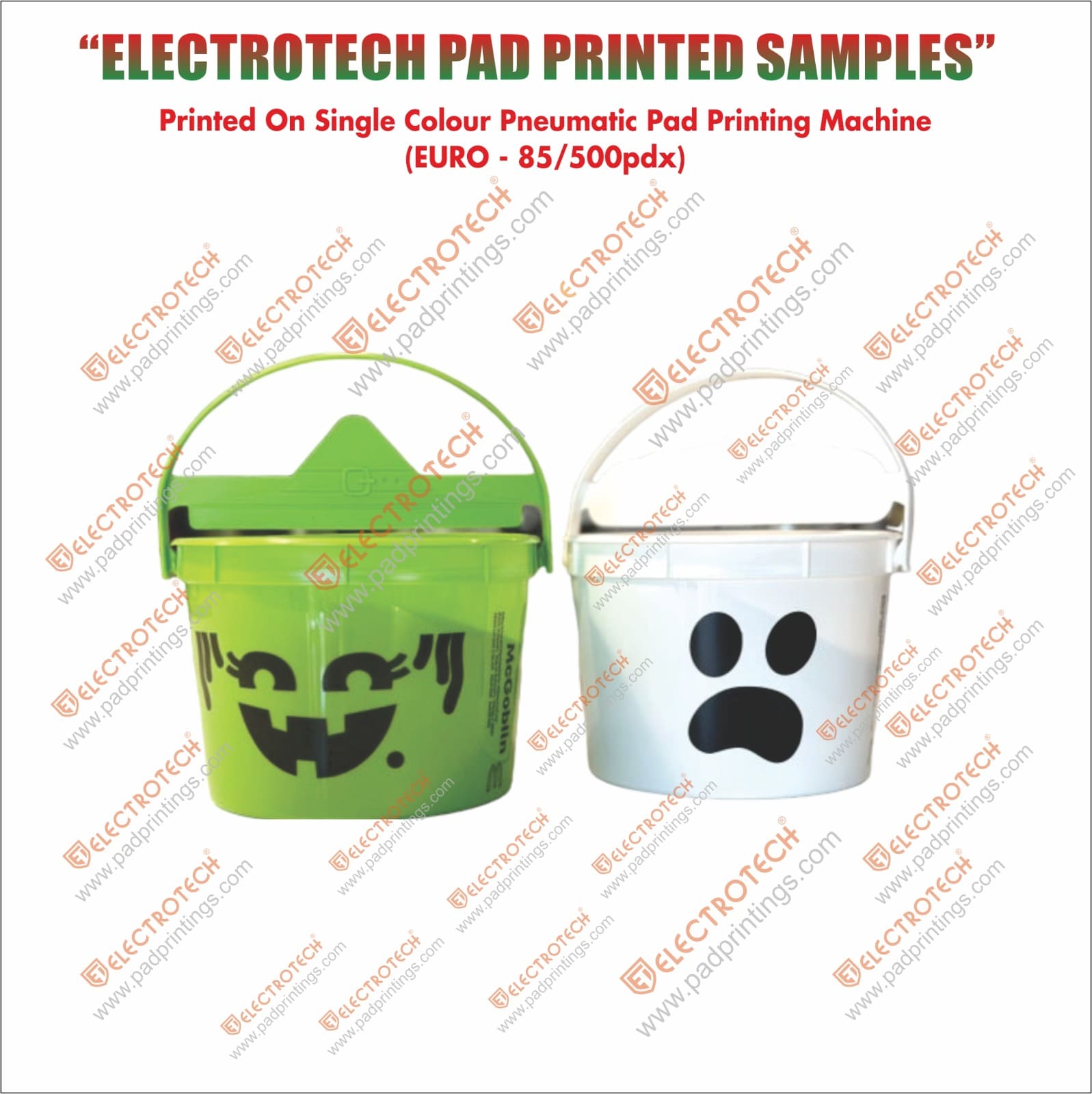

Euro-85/500hpdx

Enquire Now
Model Euro-85/500hpdx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 500
Cliche/Plate Size [mm] 100 x 500
Print Image Size [ ⌀ mm] 70 x 300
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 120
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 810
Width - 645
Height - 1300
Weight kgs (Approx)[Kgs] 131

Euro-120pc

Enquire Now
Model Euro-120pc
No. of Colors 1
Doctoring Cup Dia [mm] 125
Print Speed [Max./Hrs] 1250
Cliche/Plate Size [mm] 150 x 300
Print Image Size [⌀ mm] 120
Product Height [mm] 200
Power Consumption [W] 50
Control System PLC with HMI
Control Voltage 12/24 VDC
Drive Electro Mechanical
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 120
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 1020
Width - 745
Height - 1360
Weight kgs (Approx)[Kgs] 171

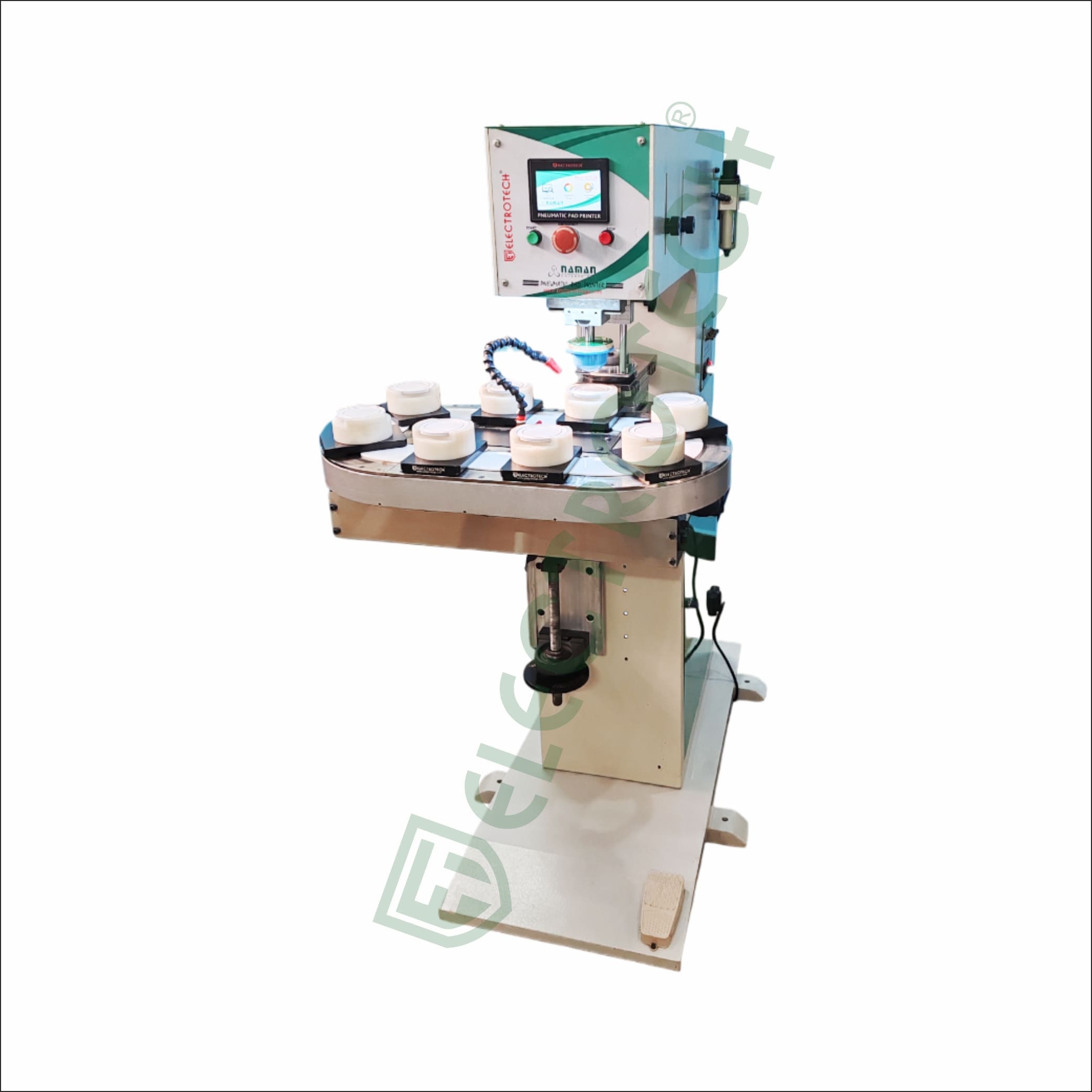

Euro-85/250pc

Enquire Now
Model Euro-85/250pc
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 1000
Cliche/Plate Size [mm] 100 x 250
Print Image Size [⌀ mm] 85
Product Height [mm] 200
Power Consumption [W] 50
Control System PLC with HMI
Control Voltage 12/24 VDC
Drive Electro Mechanical
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 120
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 1020
Width - 750
Height - 1410
Weight kgs (Approx)[Kgs] 158
