Motorised Pad Printing Machine

Pad Printing Machines Motorised Pad Printing Machine

EURO - 55edx

Enquire Now
Model Euro-55edx
No. of Colors 1
Doctoring Cup Dia [mm] 60
Print Speed [Max./Hrs] 2000
Cliche/Plate Size [mm] 70 x 140
Print Image Size [ mm] 55
Product Height [mm] 400
Power Consumption [W] 120
Control System Electrical
Control Voltage 09/12 VDC
Drive Electro Mechanical
Operating Pressure Not Required
Air Consumption [Lit/min.] No
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 520
Width - 410
Height - 1150
Weight kgs (Approx)[Kgs] 60

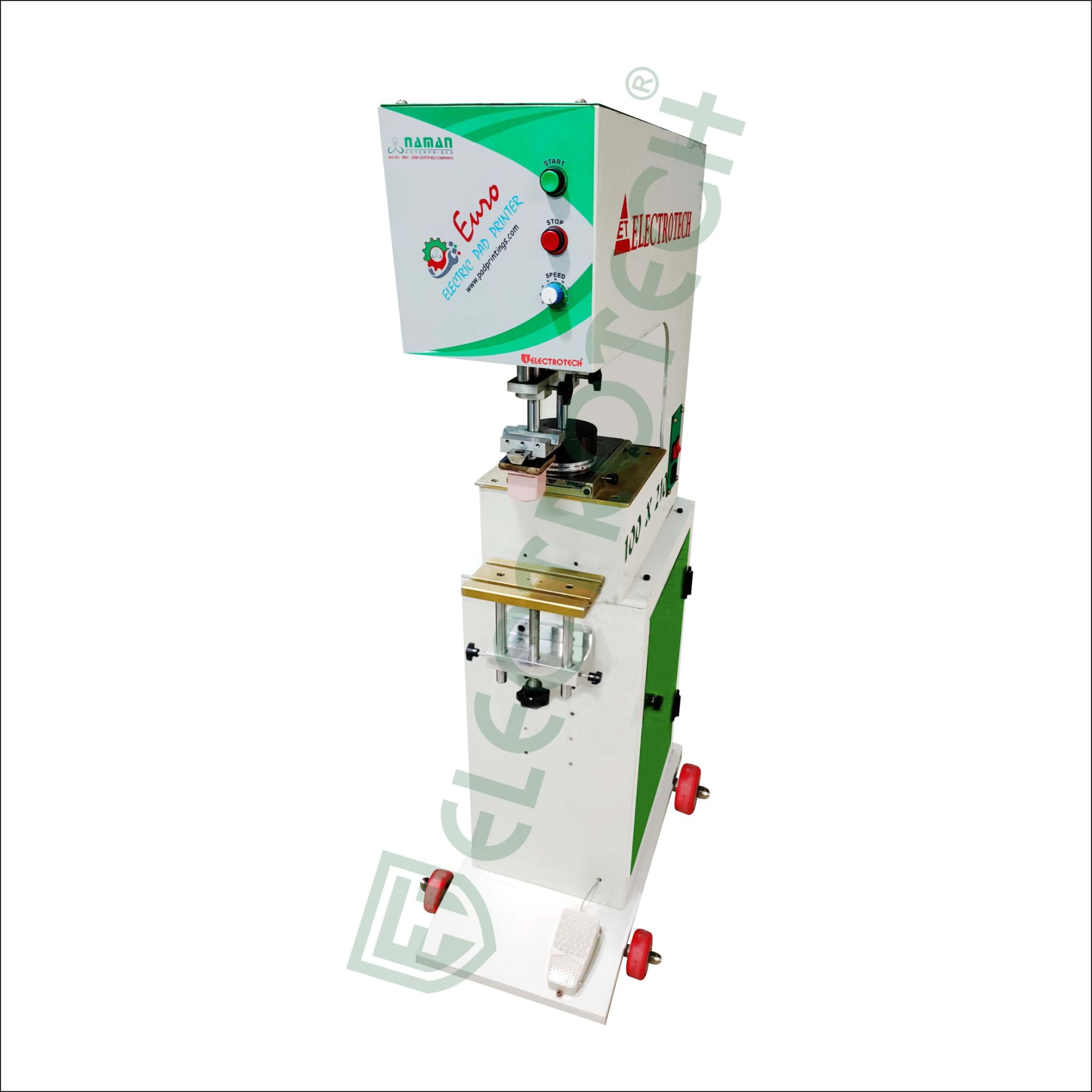

EURO - 85-210edx

Enquire Now
Model Euro-85/210edx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 2000
Cliche/Plate Size [mm] 100x210
Print Image Size [ mm] 85
Product Height [mm] 400
Power Consumption [W] 250
Control System Electrical
Control Voltage 09/12 VDC
Drive Electro Mechanical
Operating Pressure Not Required
Air Consumption [Lit/min.] No
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 660
Width - 450
Height - 1285
Weight kgs (Approx)[Kgs] 112

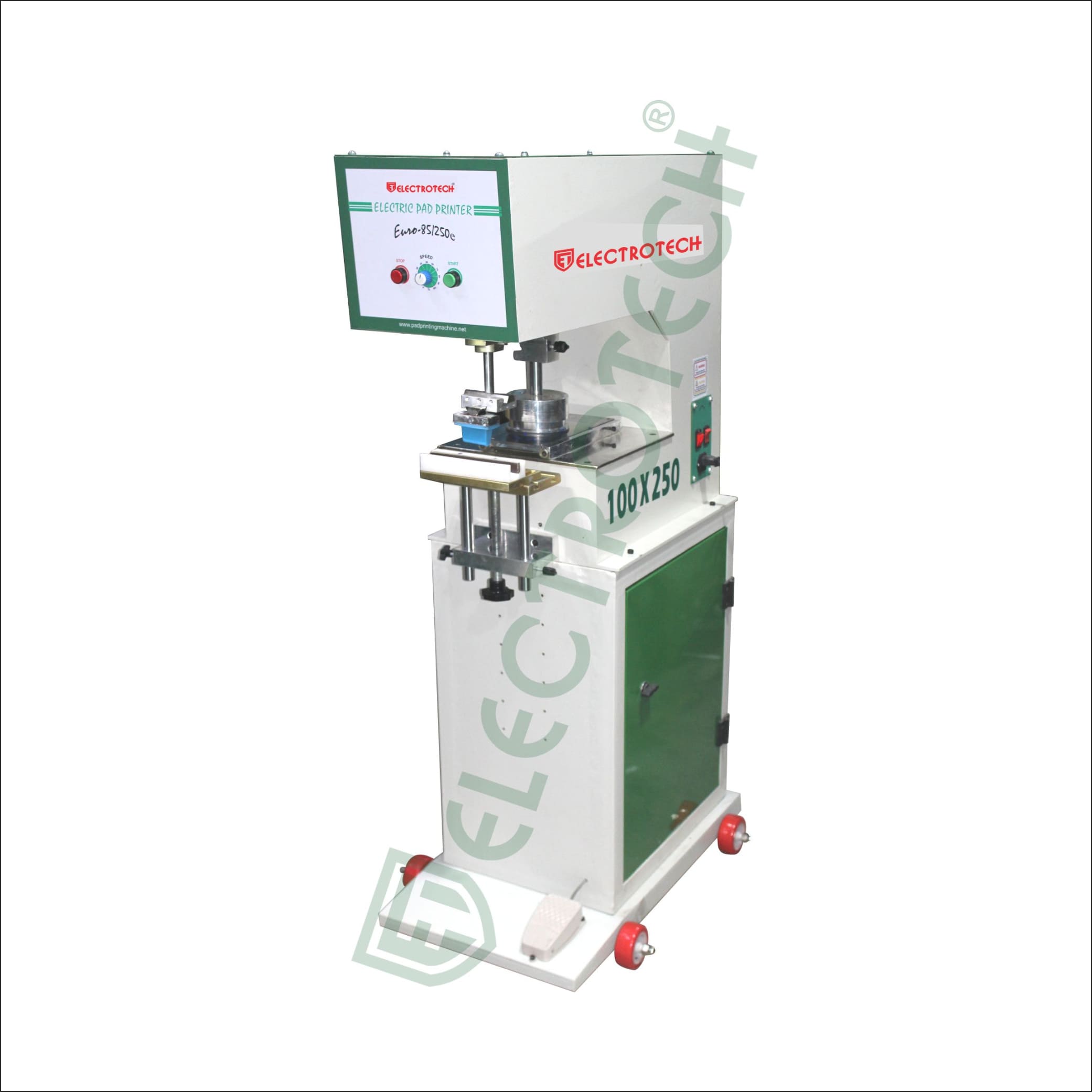

85-250edx

Enquire Now
Model Euro-85/250edx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 1800
Cliche/Plate Size [mm] 100x250
Print Image Size [ mm] 85 or 100x60
Product Height [mm] 400
Power Consumption [W] 250
Control System Electrical
Control Voltage 09/12 VDC
Drive Electro Mechanical
Operating Pressure Not Required
Air Consumption [Lit/min.] No
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 710
Width - 500
Height - 1290
Weight kgs (Approx)[Kgs] 136
